MF-R110

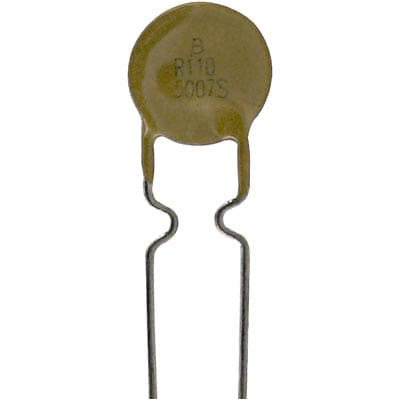

Fuse Resettable 40A 0.35x0.118" Radial 30VDC DCR 0.1 Ohms PCB MF-R Series | Bourns MF-R110
Availability: In Stock
Package Type: RADIAL
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MF-R110 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

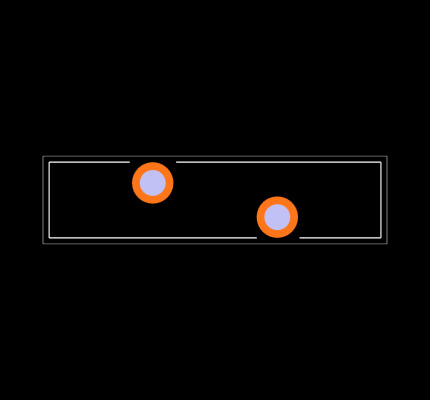

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MF-R110
| Part Name | MF-R110 |
| Manufacturer | Bourns |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.1 (Ω) |
| Hold Current (A) | 1.1 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Current (A) | 40 A |
| Voltage Rating (V) | 30 (V) |
| Width | 3 (mm) |
| Lead Orientation | Radial |
| Height | 14 (mm) |
| Power Dissipation | 0.7 (W) |
| Length | 8.9 (mm) |
| Trip Current (A) | 2.2 (A) |
| Time To Trip | 6.6 (s) |
| Maximum Resistance | 270 (mΩ) |
| Maximum Operating Temperature | +85 (°C) |
