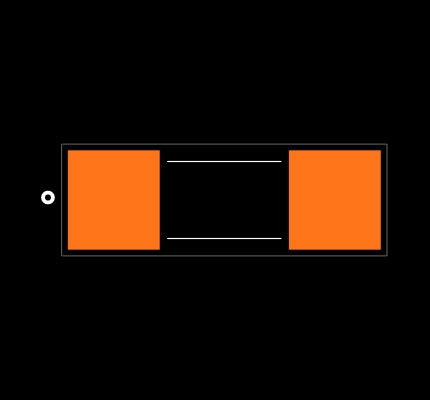

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
MF-SM185/33-2

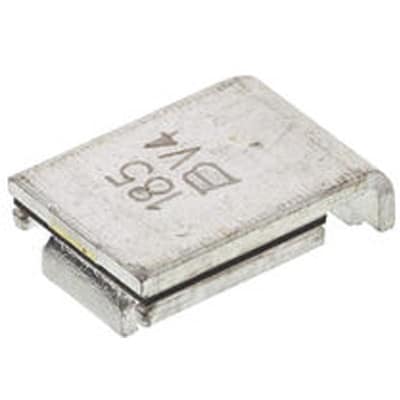

SMD PTC Resettable Fuses, 33V, 180mA | Bourns MF-SM185/33-2
Availability: Out of Stock
Package Type: SMD-2
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MF-SM185/33-2 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

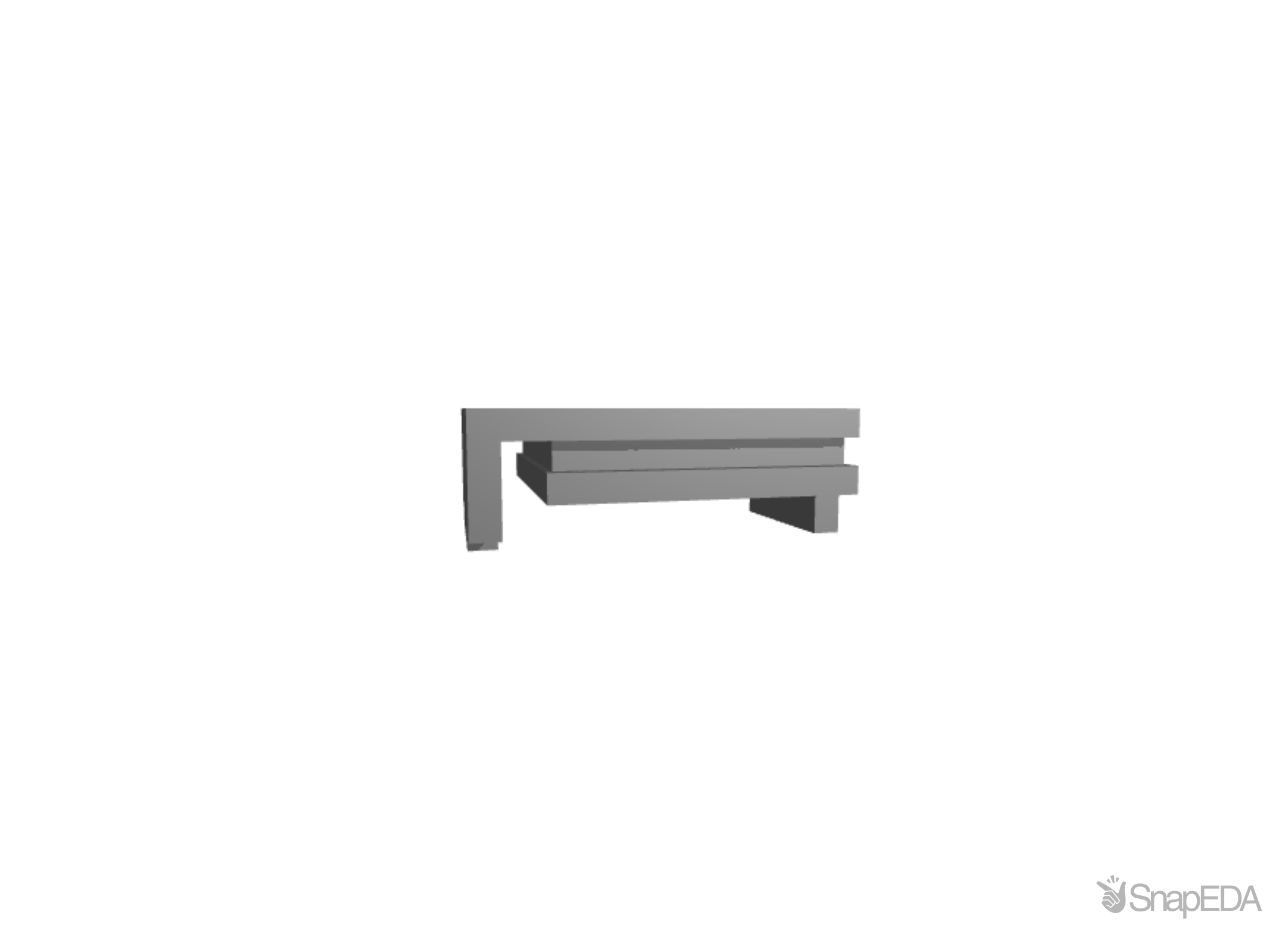

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MF-SM185/33-2
| Part Name | MF-SM185/33-2 |
| Manufacturer | Bourns |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.04 (Ω) |
| Maximum Resistance | 150 (mΩ) |
| Hold Current (A) | 1.8 (A) |
| Dimensions | 9.5 x 6.71 x 3 (mm) |
| Maximum Current (A) | 40 A |
| Operating Temperature Range | -40 → +85 °C |
| Terminal Material | Tin Plated Brass |
| Voltage Rating (V) | 33 (V) |
| Height | 3 (mm) |
| Width | 6.71 (mm) |
| Length | 9.5 (mm) |
| Package Size | 3425 |
| Trip Current (A) | 3.6 (A) |
| Time To Trip | 5 (s) |
| Power Dissipation | 1.9 (W) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -40 (°C) |
