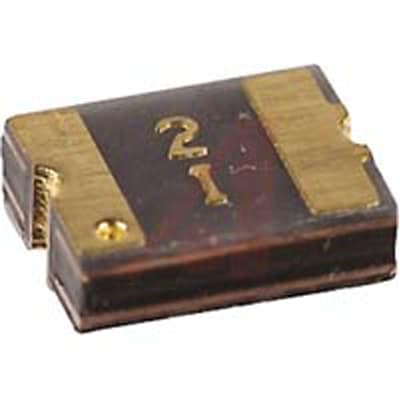

MF-USMF005-2
Fuse, Resettable, Fast Acting, 10A, Sz 1210, 0.135x0.11x0.043", SMT, 30VDC, PCB | Bourns MF-USMF005-2
Availability: In Stock
Package Type: 1210
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MF-USMF005-2 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

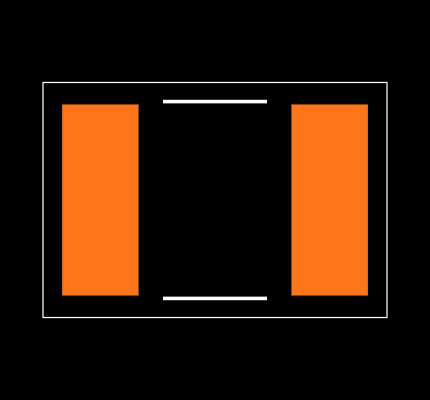

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MF-USMF005-2
| Part Name | MF-USMF005-2 |
| Manufacturer | Bourns |
| Category | Circuit Breakers, Fuses & Protection |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 2.8 (Ω) |
| Maximum Resistance | 50 (Ω) |
| Hold Current (A) | 0.05 (A) |
| Dimensions | 3.43 x 2.8 x 1.1 (mm) |
| Maximum Current (A) | 10 A |
| Voltage Rating (V) | 30 (V) |
| Series | MF-USMF |
| Terminal Material | Electroless Nickel Immersion Gold |
| Package Size | 1210 |
| Height | 1.1 (mm) |
| Width | 2.8 (mm) |
| Length | 3.43 (mm) |
| Trip Current (A) | 0.15 (A) |
| Time To Trip | 1.5 (s) |
| Operating Temperature Range | -40 → +85 °C |
| Power Dissipation | 0.6 (W) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the MF-USMF005-2 by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
86,279
|
|
Visit Site | |
|
★ Featured
|
90,000
|
11,280 x $0.03
|
Visit Site | |
| Arrow Europe |
30,000
|
|
Visit Site | |
| Avnet America |
24,000
|
|
Visit Site | |
| Buerklin |
2,245
|
|
Visit Site | |
| Chip One Stop |
9,000
|
|
Visit Site | |
| Farnell UK |
15,000
|
3,000 x $0.30
|
Visit Site | |
| Newark |
24,000
|
|
Visit Site | |
| Onlinecomponents |
22,080
|
|
Visit Site | |
| RS Americas |
10
|
|
Visit Site | |
| RS UK |
3,380
|
|
Visit Site | |
| TTI Europe |
51,000
|
|
Visit Site | |
| Verical |
9,000
|
|
Visit Site | |
| element14 Singapore |
15,000
|
|
Visit Site |
No issues have been reported for the MF-USMF005-2
