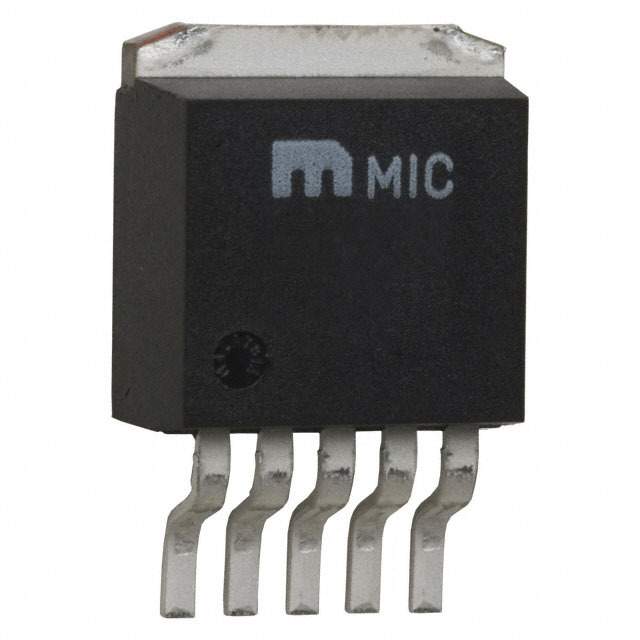

MIC29302WU-TR
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-5
Availability: In Stock
Package Type: TO-263-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MIC29302WU-TR by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MIC29302WU-TR
| Part Name | MIC29302WU-TR |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 1 % |
| Dimensions | 10.66 x 10.84 x 4.49 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 3 (A) |
| Reference Voltage (V) | 1.24 (V) |
| Line Regulation | 0.5 % |
| Regulator Type | Low Dropout Voltage |
| Output Type | Adjustable |
| Height | 4.49 (mm) |
| Width | 10.84 (mm) |
| Length | 10.66 (mm) |
| Package Type | D2PAK (TO-263) |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.25 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 26 V |
| Accuracy | ±2 (%) |
