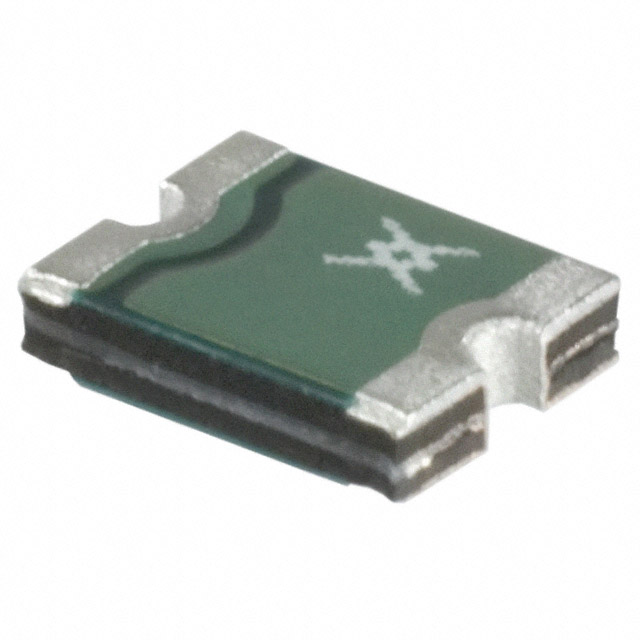

MICROSMD005F-2
PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 1W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R
Availability: In Stock
Package Type: 1210
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MICROSMD005F-2 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

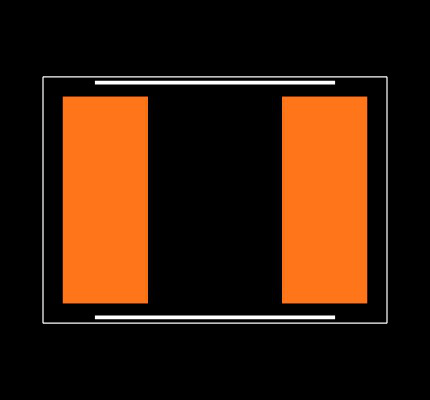

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MICROSMD005F-2
| Part Name | MICROSMD005F-2 |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 3.6 (Ω) |
| Maximum Resistance | 50 (Ω) |
| Hold Current (A) | 0.05 (A) |
| Dimensions | 3.43 x 2.8 x 0.85 (mm) |
| Maximum Current (A) | 10 A |
| Voltage Rating (V) | 30 (V dc) |
| Operating Temperature Range | Maximum of +85 °C |
| Height | 0.85 (mm) |
| Width | 2.8 (mm) |
| Length | 3.43 (mm) |
| Trip Current (A) | 150 (mA) |
| Time To Trip | 1.5 (s) |
| Power Dissipation | 1 (W) |
| Maximum Operating Temperature | +85 (°C) |
Inventory for the MICROSMD005F-2 by Littelfuse from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
120,714
|
|
Visit Site | |
|
★ Featured
|
48,792
|
|
Visit Site | |
| Arrow Electronics |
44,000
|
4,000 x $0.17
|
Visit Site | |
| Chip One Stop |
664
|
|
Visit Site | |
| CoreStaff |
26
|
|
Visit Site | |
| Farnell UK |
8,572
|
|
Visit Site | |
| Newark |
4,000
|
|
Visit Site | |
| RS UK |
50,300
|
|
Visit Site | |
| TTI Europe |
16,000
|
4,000 x $0.15
|
Visit Site | |
| Verical |
26
|
26 x $2.90
|
Visit Site | |
| element14 Singapore |
8,492
|
|
Visit Site |
No issues have been reported for the MICROSMD005F-2
