MICROSMD010F-2

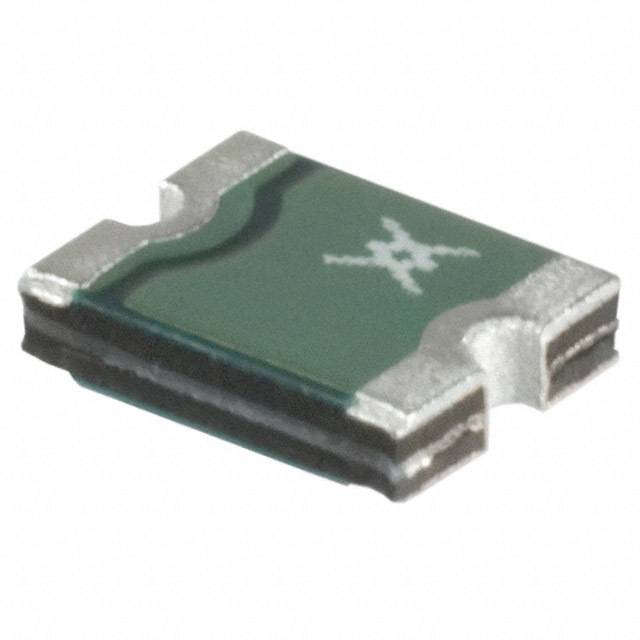

Polymeric PTC Resettable Fuse 30V 100 mA Ih Surface Mount 1210 (3225 Metric), Concave
Availability: In Stock
Package Type: 1210
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MICROSMD010F-2 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

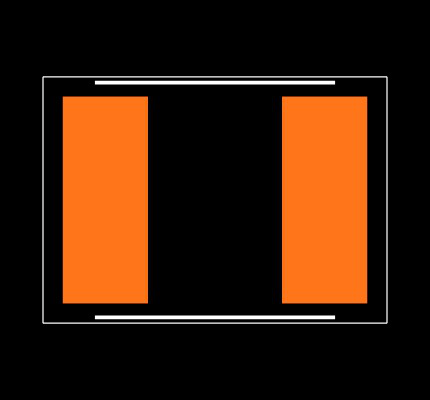

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MICROSMD010F-2
| Part Name | MICROSMD010F-2 |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 2.1 (Ω) |
| Hold Current (A) | 0.1 (A) |
| Dimensions | 3.43 x 2.8 x 0.85 (mm) |
| Maximum Current (A) | 10 A |
| Width | 2.8 (mm) |
| Voltage Rating (V) | 30 (V dc) |
| Operating Temperature Range | Maximum of +85 °C |
| Height | 0.85 (mm) |
| Power Dissipation | 0.8 (W) |
| Length | 3.43 (mm) |
| Trip Current (A) | 250 (mA) |
| Time To Trip | 1 (s) |
| Maximum Resistance | 15 (Ω) |
| Maximum Operating Temperature | +85 (°C) |
