MICROSMD110F-2

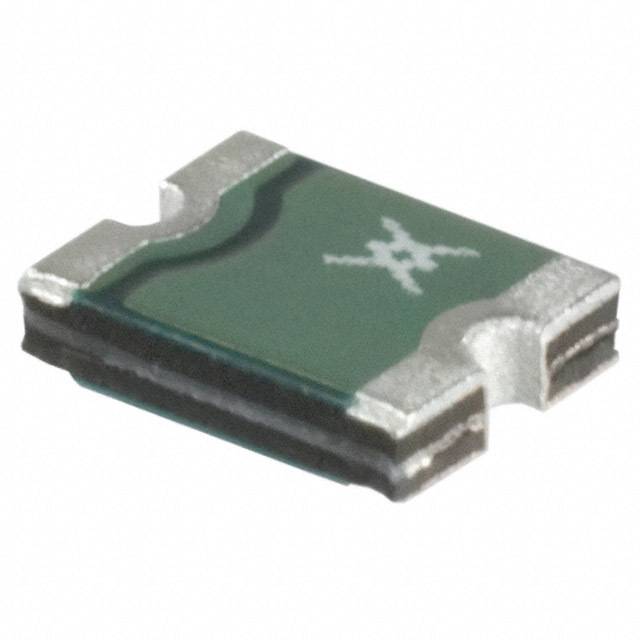

Polymeric PTC Resettable Fuse 6V 1.1 A Ih Surface Mount 1210 (3225 Metric), Concave
Availability: In Stock
Package Type: 1210
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MICROSMD110F-2 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MICROSMD110F-2
| Part Name | MICROSMD110F-2 |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.07 (Ω) |
| Maximum Resistance | 210 (mΩ) |
| Hold Current (A) | 1.1 (A) |
| Dimensions | 2.8 x 0.48 x 3.43 (mm) |
| Maximum Current (A) | 40 A |
| Voltage Rating (V) | 6 (V dc) |
| Series | MICROSMD |
| Terminal Material | Tin |
| Package Size | 1210 |
| Height | 3.43 (mm) |
| Width | 0.48 (mm) |
| Length | 2.8 (mm) |
| Trip Current (A) | 2.2 (A) |
| Time To Trip | 0.2 (s) |
| Operating Temperature Range | -40 → +85 °C |
| Power Dissipation | 0.8 (W) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -40 (°C) |
