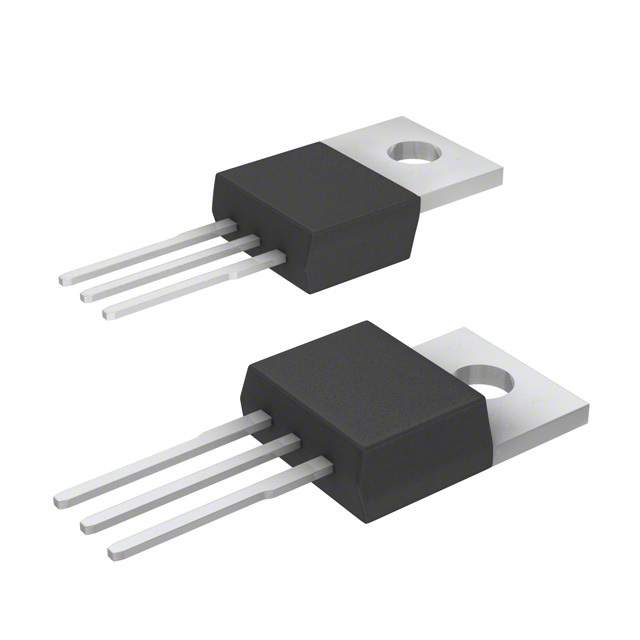

MJE15030
TRANSISTOR, NPN, TO-220; Transistor Type:Bipolar; Transistor Polarity:NPN; Collector-to-Emitter Breakdown Voltage:150V; Current Ic Continuous a Max:8A; Voltage, Vce Sat Max:0.5V; Power Dissipation:50W; Min Hfe:20; ft, Typ:30MHz; Case Style:TO-220; Termination Type:Through Hole; Current Ic Max:8A; Current Ic av:8A; Current Ic hFE:4A; Current, Icm Pulsed:16A; No. of Pins:3; Power, Ptot:50W; Temperature, Full Power Rating:25°C; Transistors, No. of:1; Voltage, Vcbo:150V; ft, Min:30MHz
Availability: In Stock
Package Type: TO-220-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MJE15030 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

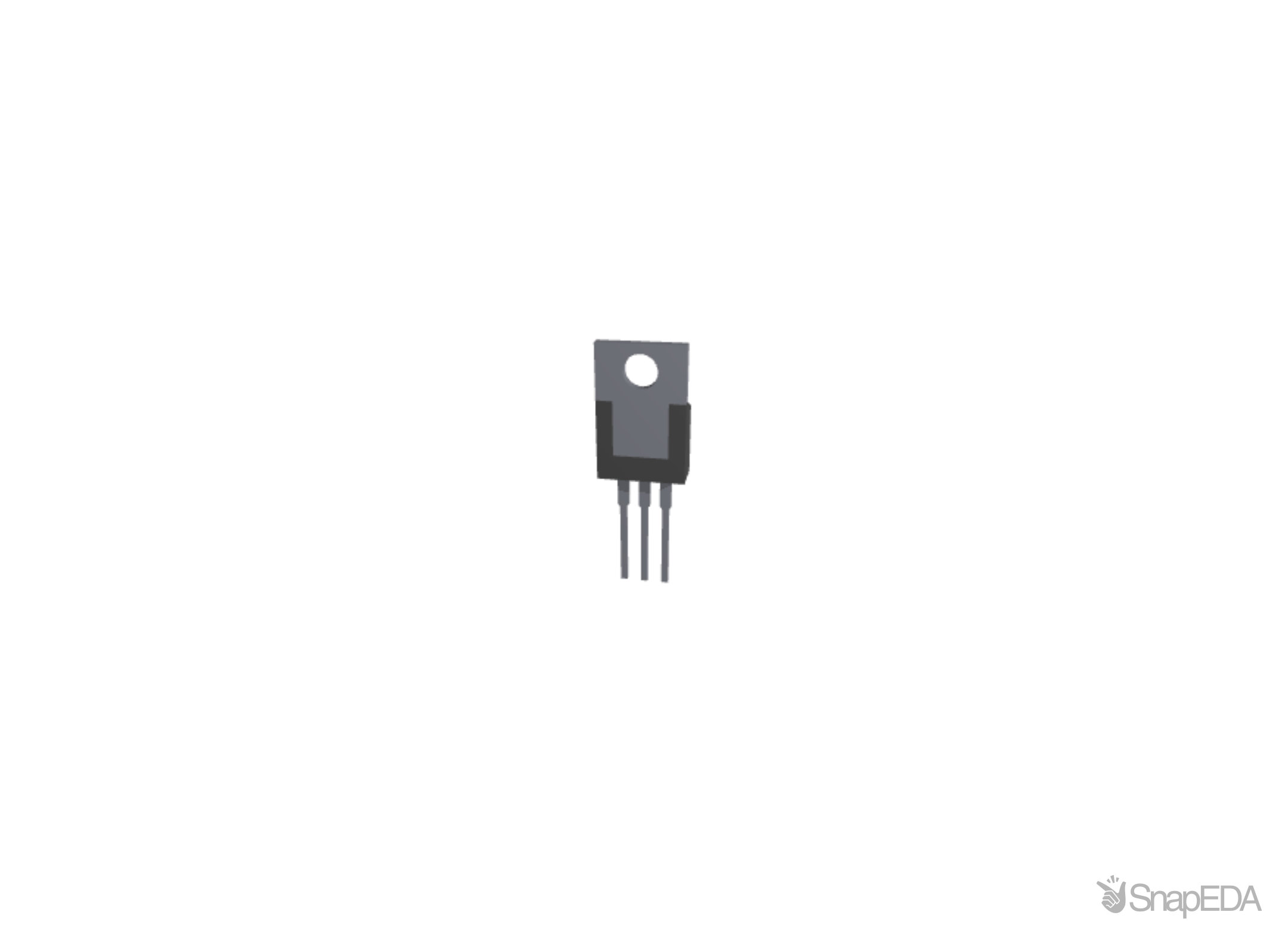

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MJE15030
| Part Name | MJE15030 |
| Manufacturer | ON |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | NPN |
| Dimensions | 9.28 x 10.28 x 4.82 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 50 W |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | 150 V |
| Maximum Operating Frequency | 30 MHz |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | TO-220AB |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 8 A |
| Maximum Collector Base Voltage (V) | 150 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
Inventory for the MJE15030 by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
|
★ Featured
|
16,000
|
2,210 x $0.16
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the MJE15030
