MLF1608DR47KTA00
Ind RF Chip Shielded Multi-Layer 470nH 10% 25MHz 15Q-Factor Ferrite 100mA 0603 Punched Paper T/R
Availability: In Stock
Package Type: 1608
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MLF1608DR47KTA00 by TDK and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

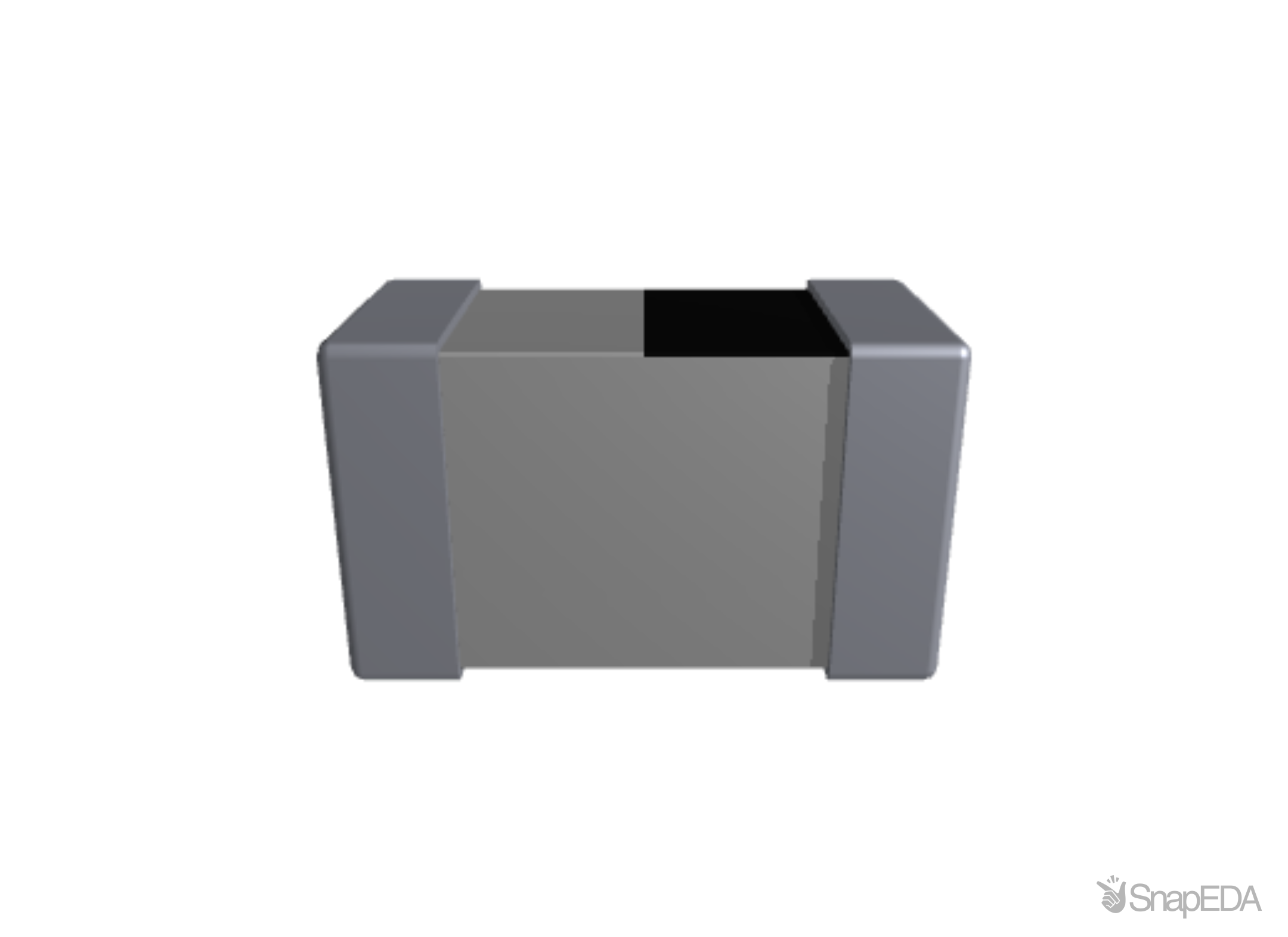

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MLF1608DR47KTA00
| Part Name | MLF1608DR47KTA00 |
| Manufacturer | TDK |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Dc Resistance | 950 (mΩ) |
| Inductor Construction | Multilayer |
| Dimensions | 1.6 x 0.8 x 0.8 (mm) |
| Maximum Dc Current (A) | 100 (mA) |
| Series | MLF1608 |
| Minimum Quality Factor | 15 |
| Depth | 0.8 (mm) |
| Height | 0.8 (mm) |
| Package Case | 0603 (1608M) |
| Length | 1.6 (mm) |
| Core Material | Ferrite |
| Inductance | 470 nH |
| Maximum Self Resonant Frequency | 260 (MHz) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±10 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the MLF1608DR47KTA00 by TDK from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
22,806
|
|
Visit Site | |
|
★ Featured
|
19,000
|
6,900 x $0.05
|
Visit Site | |
| Arrow Electronics |
5,048
|
|
Visit Site | |
| Verical |
11,951
|
749 x $0.04
|
Visit Site |
No issues have been reported for the MLF1608DR47KTA00
If you experienced any issues with the symbol or footprint, please report it.
