MMBD4148CA
Diode Array 1 Pair Common Anode 100 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MMBD4148CA by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for

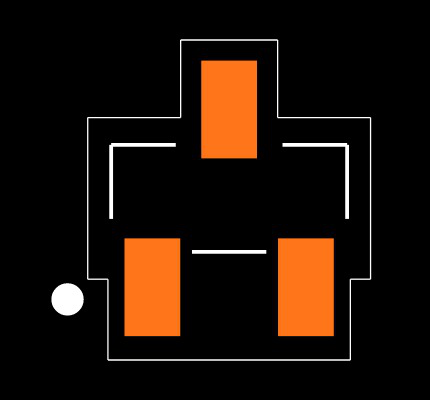

Footprint

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the MMBD4148CA
Part Name | MMBD4148CA |
Manufacturer | onsemi |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Maximum Diode Capacitance | 4 (pF) |
Dimensions | 2.92 x 1.3 x 0.93 (mm) |
Mounting Type | Surface Mount |
Power Dissipation | 350 (mW) |
Maximum Reverse Voltage (V) | 100 (V) |
Height | 0.93 (mm) |
Width | 1.3 (mm) |
Length | 2.92 (mm) |
Package Type | SOT-23 |
Number Of Elements Per Chip | 2 |
Maximum Forward Current (A) | 200 (mA) |
Maximum Operating Temperature | +150 °C |
Pin Count | 3 |
No issues have been reported for the MMBD4148CA
If you experienced any issues with the symbol or footprint, please report it.
