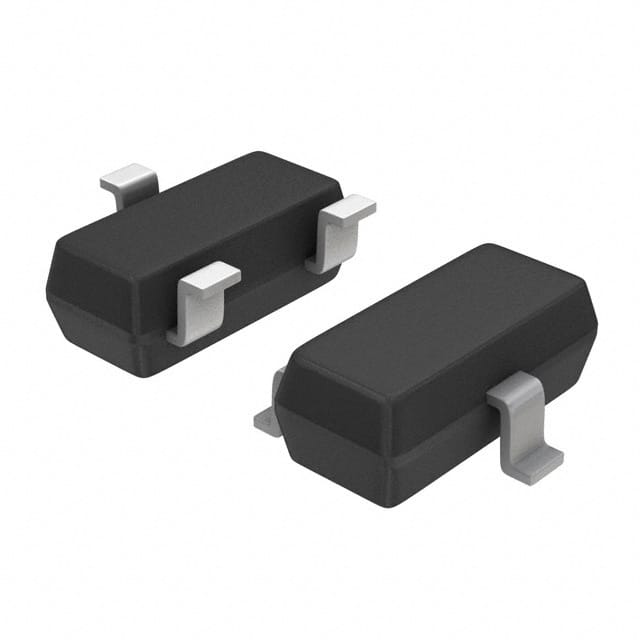

MMBT3904LT1G
Bipolar (BJT) Transistor NPN 40 V 200 mA 300MHz 300 mW Surface Mount SOT-23-3 (TO-236)
Availability: In Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MMBT3904LT1G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MMBT3904LT1G
| Part Name | MMBT3904LT1G |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Dc Current Gain (A) | 100 |
| Transistor Type | NPN |
| Dimensions | 0.94 x 2.9 x 1.3 (mm) |
| Maximum Collector Base Voltage (V) | 60 V |
| Maximum Power Dissipation | 300 mW |
| Maximum Collector Emitter Voltage (V) | 40 V |
| Maximum Operating Frequency | 300 MHz |
| Maximum Emitter Base Voltage (V) | 6 V |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 200 mA |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
Inventory for the MMBT3904LT1G by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,094,909
|
|
Visit Site | |
| Onlinecomponents |
355,000
|
|
Visit Site |
No issues have been reported for the MMBT3904LT1G
