MSCF12

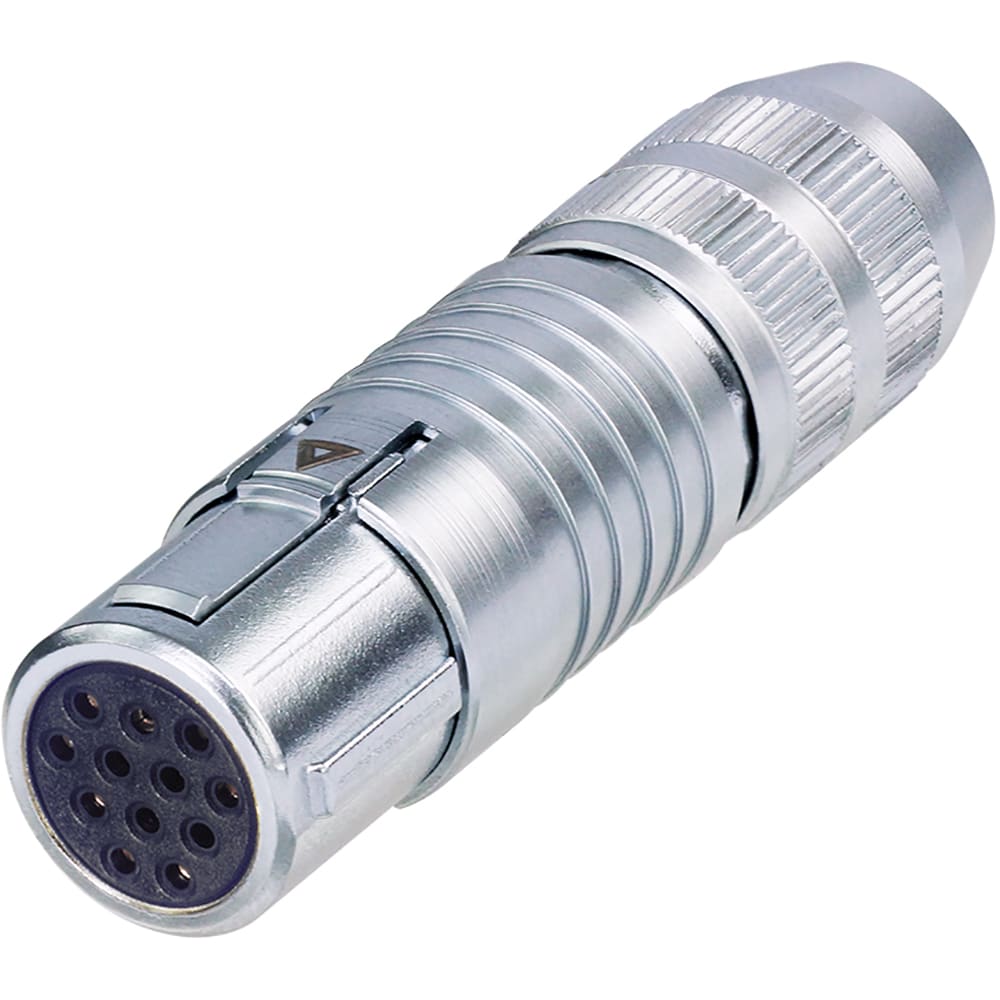

Female Connector, Housing, Insert, 12 Contacts and Strain Relief, miniCON Series | Neutrik MSCF12
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MSCF12 by Neutrik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MSCF12
| Part Name | MSCF12 |
| Manufacturer | Neutrik |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Contacts | 12 |
| Current Rating (A) | 3.0 (A) |
| Mating Type | Push-Pull |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 50.0 V |
| Series | miniCon |
| Body Orientation | Straight |
| Plug Socket | Socket |
| Contact Gender | Female |
| Housing Material | Brass, Zinc |
| Minimum Operating Temperature | -30 (°C) |
| Termination Method | Solder |
| Contact Plating | Gold |
| Strain Relief | Yes |
| Maximum Operating Temperature | +80 (°C) |
| Connector Size | Miniature |
| Contact Material | Bronze |
