MSP430F1611
MSP430 MSP430x1xx Microcontroller IC 16-Bit 8MHz 48KB (48K x 8 + 256B) FLASH 64-LQFP (10x10)
Availability: Out of Stock
Package Type: LQFP-64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MSP430F1611 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

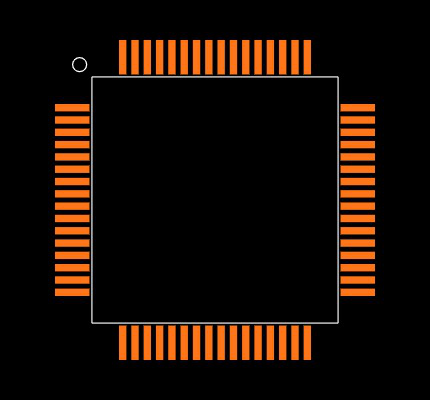

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MSP430F1611
| Part Name | MSP430F1611 |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Data Bus Width | 16 (bit) |
| Mounting Type | Surface Mount |
| Family Name | 16 bit MCU |
| Program Memory Type | Flash |
| Device Core | MSP430 |
| Package Type | LQFP |
| Maximum Frequency | 8 (MHz) |
| Program Memory Size | 48 kB |
| Pin Count | 64 |
No issues have been reported for the MSP430F1611
If you experienced any issues with the symbol or footprint, please report it.
