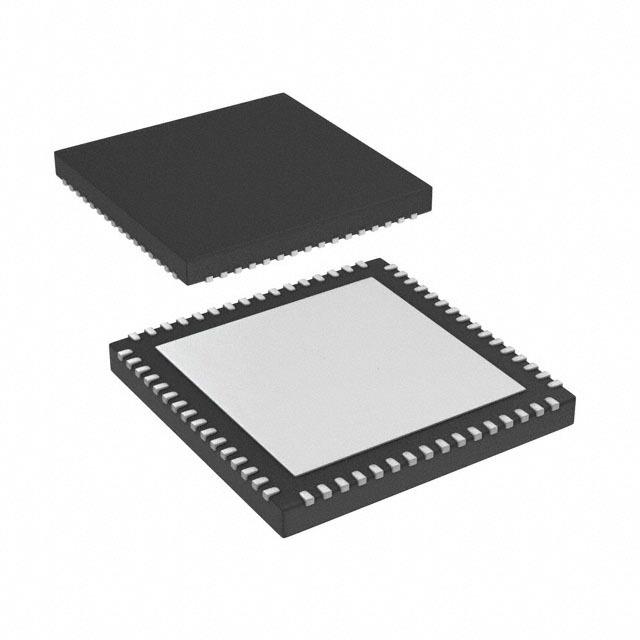

MSP430F5308IRGCT
25 MHz MCU with 16KB Flash, 6KB SRAM, 10-bit ADC, comparator, DMA, UART/SPI/I2C, HW multiplier
Availability: In Stock
Package Type: QFN-64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MSP430F5308IRGCT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

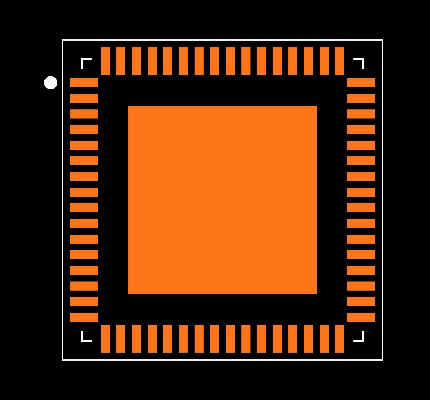

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MSP430F5308IRGCT
| Part Name | MSP430F5308IRGCT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 9.15 x 9.15 x 0.95 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 9.15 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 16 kB |
| Number Of Spi Channels | 4 |
| Ram Size | 6 kB |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | VQFN |
| Maximum Frequency | 25 (MHz) |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 1 (12 x 10 bit) |
| Family Name | MSP430 |
| Device Core | MSP430 |
| Length | 9.15 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 2 |
| Pin Count | 64 |
| Pulse Width Modulation | 0 |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 0.95 (mm) |
| Typical Operating Supply Voltage (V) | 1.8 → 3.6 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 2 |
