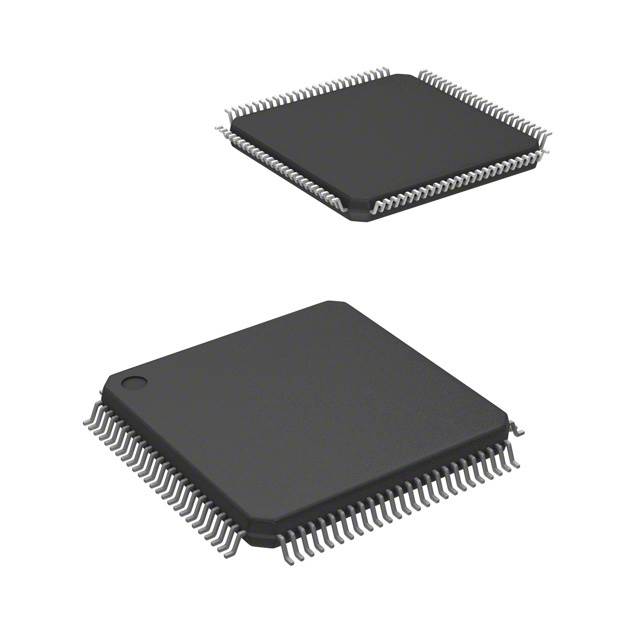

MSP430F5659IPZ
20 MHz MCU with 512KB Flash, 64KB SRAM, 12-bit ADC, 12-bit DAC, comparator, DMA, USB
Availability: In Stock
Package Type: LQFP-100
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MSP430F5659IPZ by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

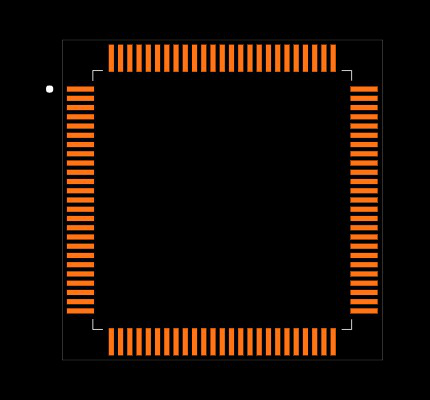

Footprint
No web preview
This Footprint is Available for

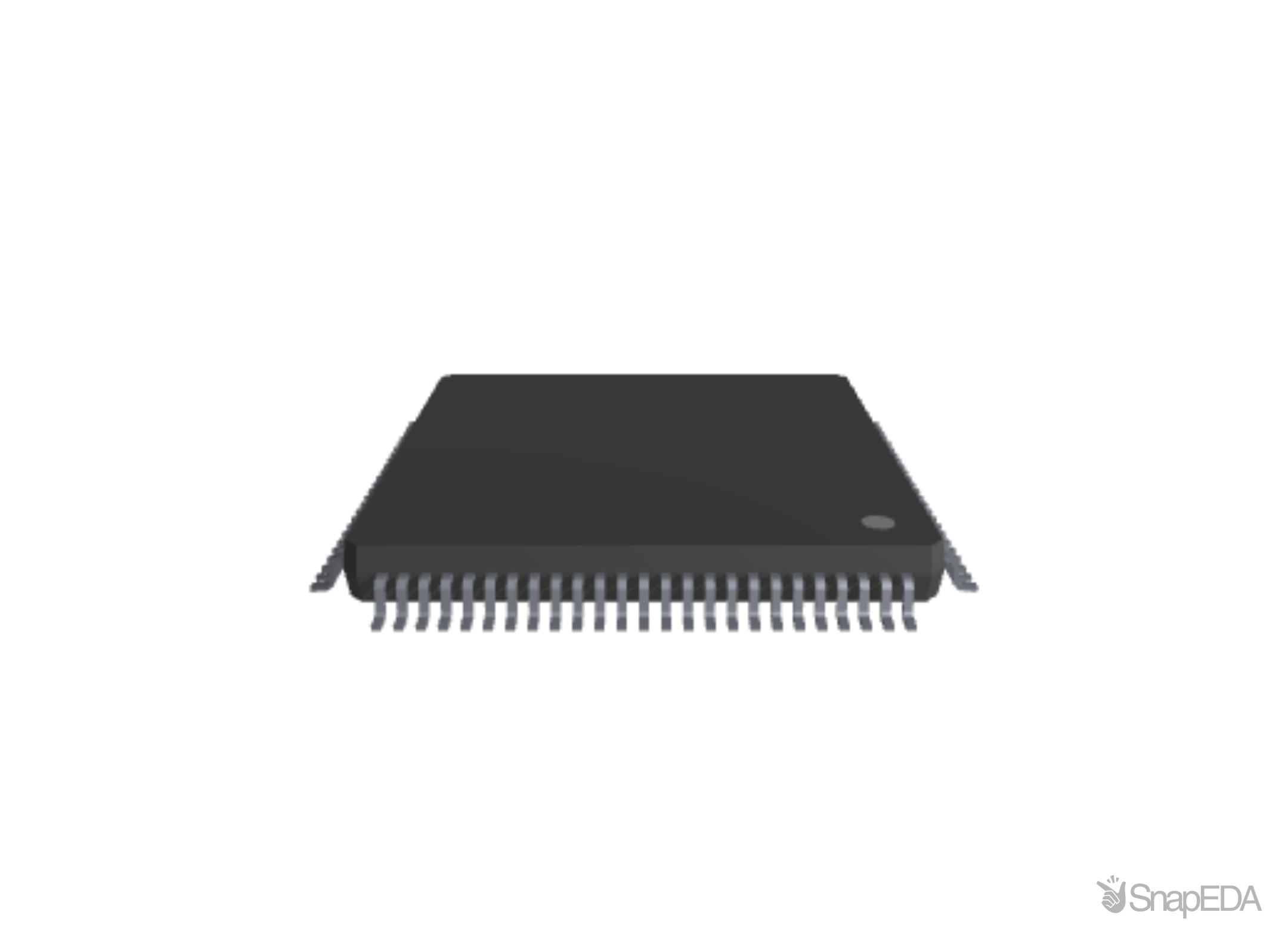

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MSP430F5659IPZ
| Part Name | MSP430F5659IPZ |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 14.2 x 14.2 x 1.45 (mm) |
| Usb Channels | 1 |
| Width | 14.2 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 512 kB |
| Number Of Spi Channels | 6 |
| Ram Size | 66 kB |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | LQFP |
| Adcs | 1 (16 x 12 bit) |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 20 (MHz) |
| Family Name | MSP430 |
| Device Core | MSP430 |
| Length | 14.2 (mm) |
| Number Of Ethernet Channels | 0 |
| Number Of Lin Channels | 3 |
| Pin Count | 100 |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 3 |
| Height | 1.45 (mm) |
| Typical Operating Supply Voltage (V) | 1.8 → 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 3 |
