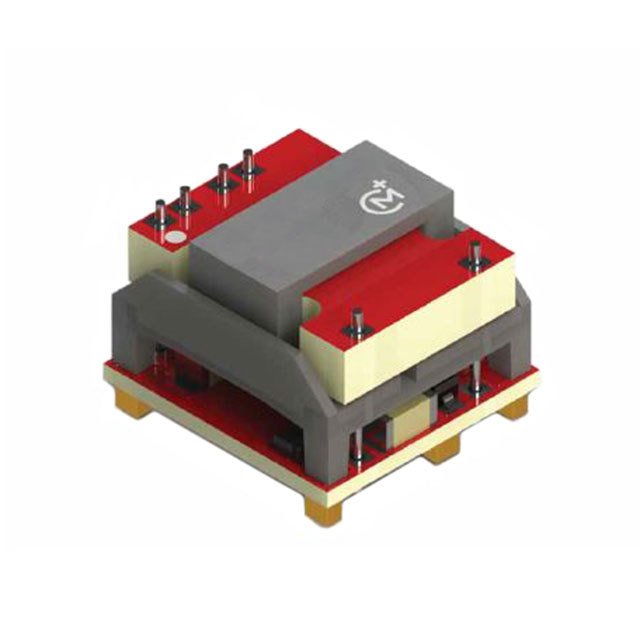

MTC2S2403MC-R7
Isolated Module DC DC Converter 1 Output 3.3V 606mA 18V - 36V Input
Availability: Out of Stock
Package Type: SMD-6
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MTC2S2403MC-R7 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

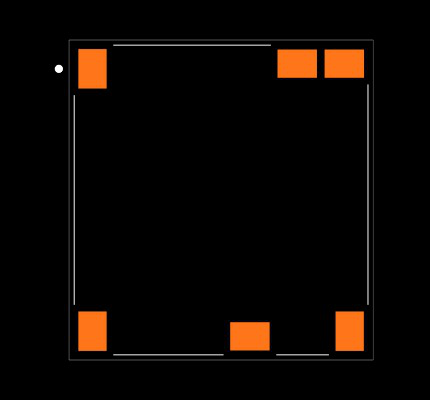

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MTC2S2403MC-R7
| Part Name | MTC2S2403MC-R7 |
| Manufacturer | Murata Power |
| Category | DC-DC Converters |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 11.25 (mm) |
| Number Of Outputs | 1 |
| Output Voltage Adjustment Range (V) | ±10 (%) |
| Maximum Temperature | +105 (°C) |
| Isolation Voltage (V) | 3 kV ac, 5.2 (kV dc) |
| Output Current (A) | 606 (mA) |
| Mounting Type | Surface Mount |
| Width | 14.22 (mm) |
| Series | MTC2 |
| Input Voltage Range (V) | 18 → 36 V dc |
| Isolated | Yes |
| Efficiency | 78.5 (%) |
| Length | 14.99 (mm) |
| Load Regulation | ±0.5 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 24 V dc |
| Power Rating | 2 (W) |
| Output Voltage (V) | 3.3 (V dc) |
No issues have been reported for the MTC2S2403MC-R7
