MTCH101-I/OT

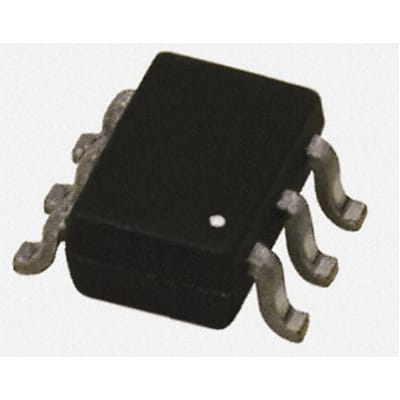

Microchip MTCH101-I/OT Capacitive Touch Sensor, 2 - 5.5 V 6-Pin SOT-23 | Microchip Technology Inc. MTCH101-I/OT
Availability: Out of Stock
Package Type: SOT-23-6
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MTCH101-I/OT by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

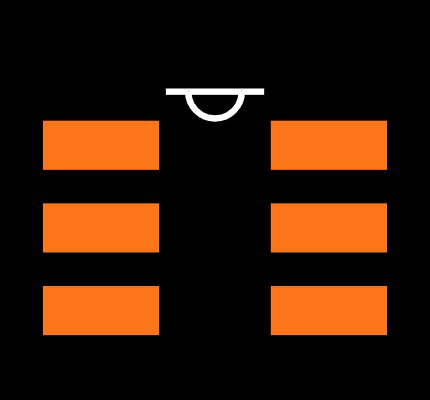

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MTCH101-I/OT
| Part Name | MTCH101-I/OT |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.1 x 1.8 x 1.3 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Maximum Output Current (A) | 25 (mA) |
| Minimum Operating Supply Voltage (V) | 2 V |
| Maximum Supply Current (A) | 25 mA |
| Output Type | Open Drain |
| Height | 1.3 (mm) |
| Width | 1.8 (mm) |
| Length | 3.1 (mm) |
| Switching Mode | Analogue, Digital |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 6 |
| Sensor Type | Capacitive |
No issues have been reported for the MTCH101-I/OT
