MUSB-05-F-B-SM-A-K-TR
SnapVerified

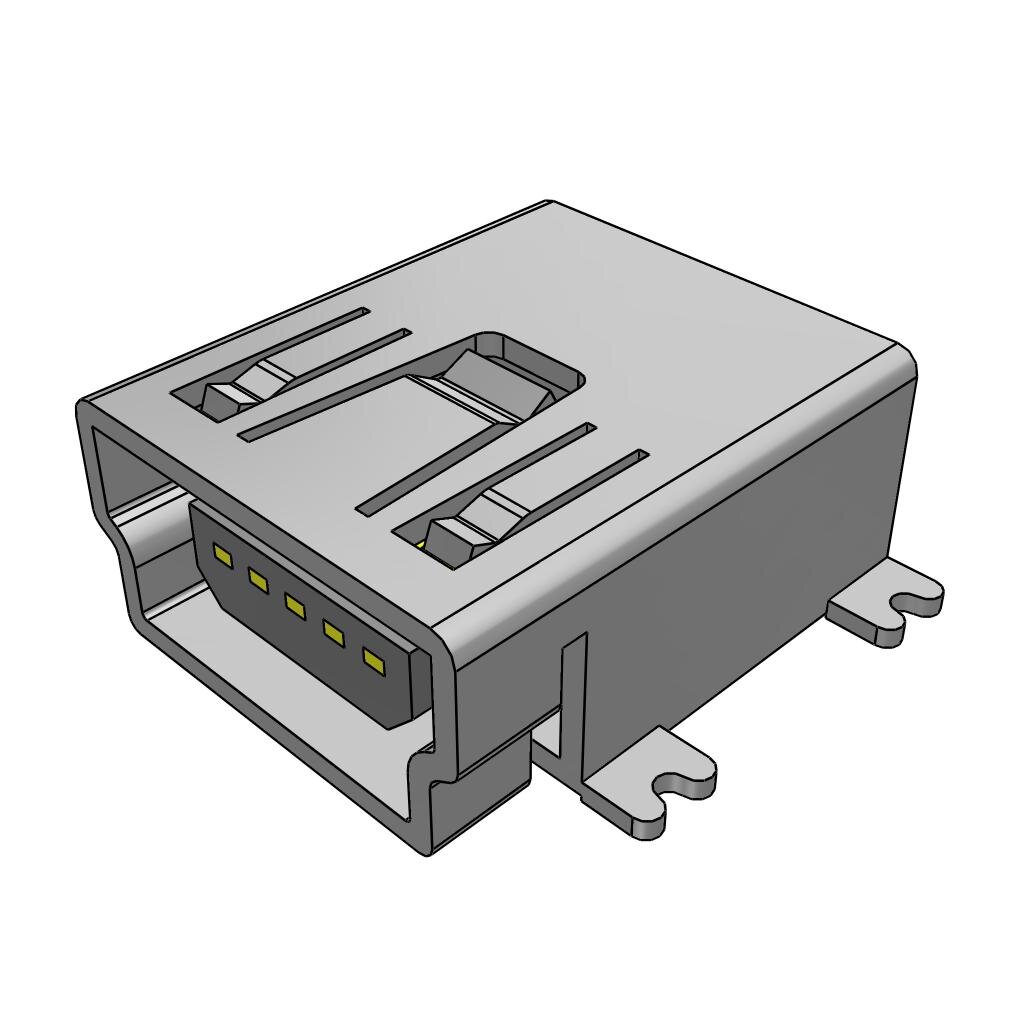

USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Availability: In Stock
Country of Origin: China

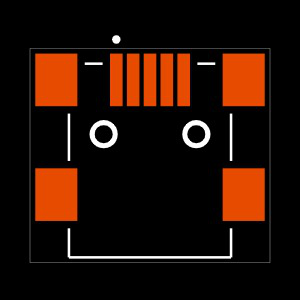

CAD Models: Symbol and Footprint
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MUSB-05-F-B-SM-A-K-TR by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

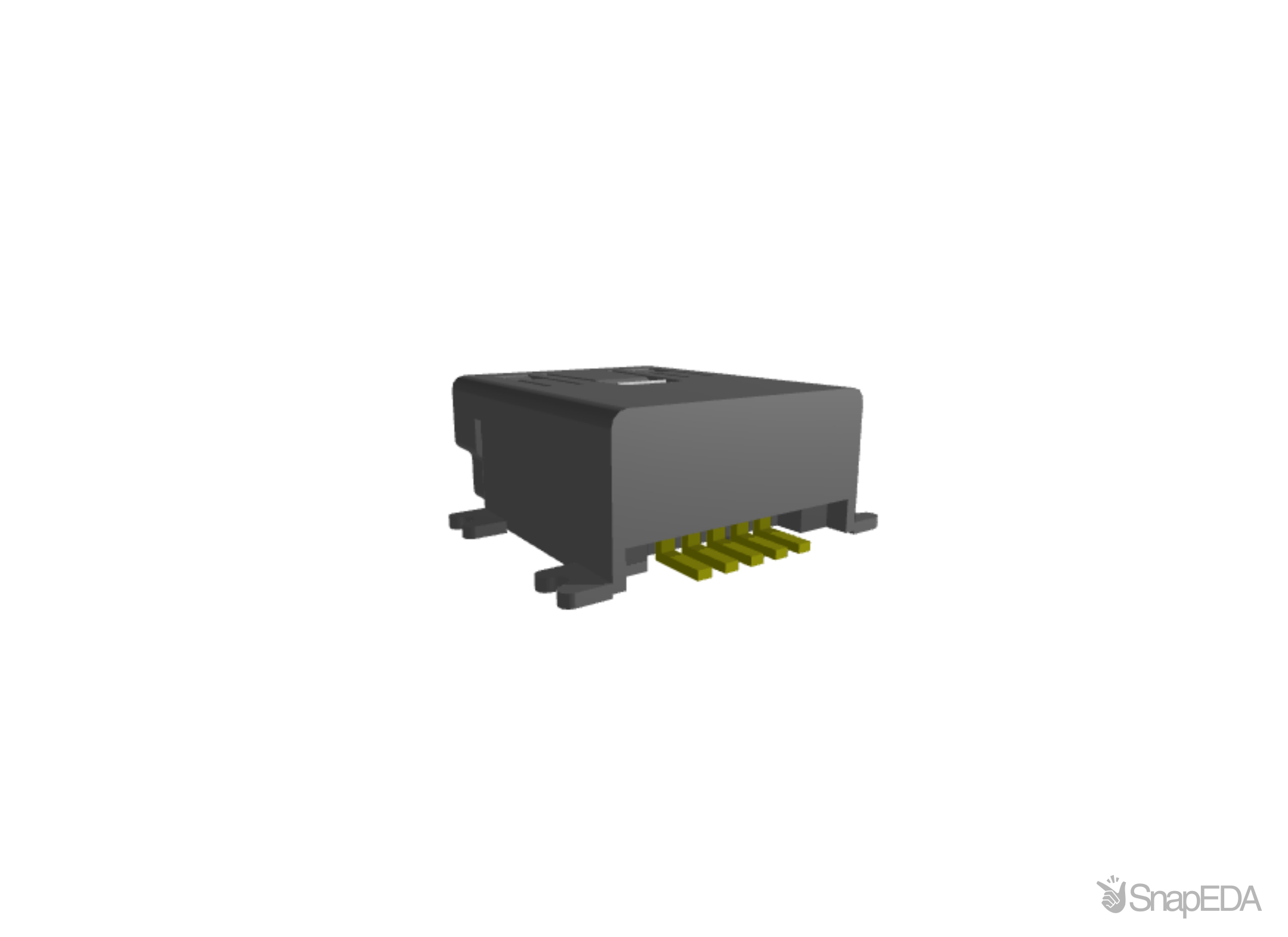

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MUSB-05-F-B-SM-A-K-TR
| Part Name | MUSB-05-F-B-SM-A-K-TR |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | MUSB |
| Country of Origin | China |
| Packaging | Tape & Reel |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Usb Version | 2.0 |
| Mounting Type | Surface Mount |
| Gender | Female |
| Body Orientation | Straight |
| Number Of Ports | 1 |
| Series | MUSB |
| Usb Type | B |
| Contact Material | Phosphor Bronze |
Inventory for the MUSB-05-F-B-SM-A-K-TR by Samtec from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site |
No issues have been reported for the MUSB-05-F-B-SM-A-K-TR
If you experienced any issues with the symbol or footprint, please report it.
