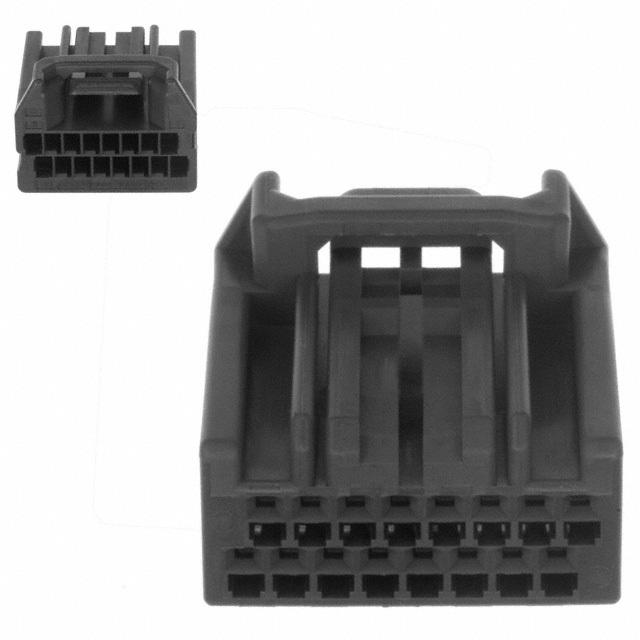

MX34016SF1
16 Rectangular Connectors - Housings Receptacle Gray 0.087" (2.20mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the MX34016SF1 by JAE Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the MX34016SF1
| Part Name | MX34016SF1 |
| Manufacturer | JAE Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3 (A) |
| Mounting Type | Cable Mount |
| Gender | Female |
| Colour | Grey |
| Height | 14 (mm) |
| Housing Material | Nylon, PPE |
| Width | 20.7 (mm) |
| Depth | 21.3 (mm) |
| Number Of Rows | 2 |
| Minimum Operating Temperature | -40 (°C) |
| Series | MX34 |
| Number Of Contacts | 16 |
| Type | Socket Housing |
| Maximum Operating Temperature | +85 (°C) |
