NANOSMDC075F-2

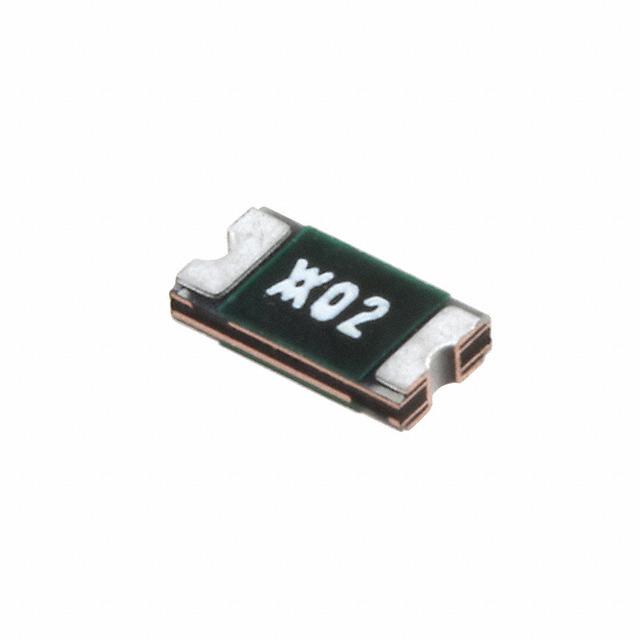

PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 6VDC 100A 0.8W 0.1s 0.09Ohm SMD Solder Pad 1206 T/R
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NANOSMDC075F-2 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NANOSMDC075F-2
| Part Name | NANOSMDC075F-2 |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.09 (Ω) |
| Hold Current (A) | 0.75 (A) |
| Dimensions | 3.4 x 1.8 x 0.68 (mm) |
| Maximum Current (A) | 100 A |
| Width | 1.8 (mm) |
| Voltage Rating (V) | 6 (V dc) |
| Operating Temperature Range | Maximum of +85 °C |
| Height | 0.68 (mm) |
| Power Dissipation | 0.8 (W) |
| Length | 3.4 (mm) |
| Trip Current (A) | 1.5 (A) |
| Time To Trip | 0.1 (s) |
| Maximum Resistance | 300 (mΩ) |
| Maximum Operating Temperature | +85 (°C) |
