NB-PTCO-162

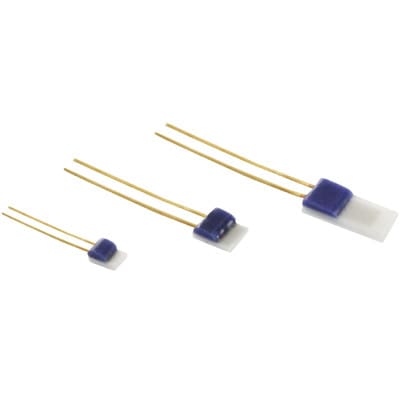

Sensor;PTFC101T1A0:PT100,2.0X2.3,T;Temperature;NB-PTCO-162 | TE Connectivity NB-PTCO-162
Availability: In Stock
Package Type: SIP-2
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NB-PTCO-162 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NB-PTCO-162
| Part Name | NB-PTCO-162 |
| Manufacturer | TE Connectivity |
| Category | Sensors |
| Maximum Temperature | 300 |
| Sensor Package | Ceramic |
| Accuracy (at T_ref) | ± .1 |
| TE Internal Number | NB-PTCO-162 |
| Tolerance Class | Class T (AA) / F0.1 |
| Model Number | PTFC101T1A0 |
| Wire Count | 2 |
| Sensor Type | Platinum Thin Film Temperature Sensor |
| T_ref for Accuracy | 0 |
| Wire Diameter | .009 |
| Wire Length | .393 |
| Length (Body) | .09 |
| Lead Wire Style | Ag |
| Height (Body) | .043 |
| Resistance (at T_ref) | 100 (0 °C) |
| Width (Body) | 2 |
| Ambient Temperature Range | -58 – 572 |
| Connector Type | Open Ends |
| Wire/Cladding Type | Ag |
| RoHS | True |
| T_ref for Resistance | 0 |
| T1 and T2 for TCR | 0 and +100 |
| TCR at (T1 and T2) | 3850 |
| Element Material | Platinum |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the NB-PTCO-162 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,428
|
|
Visit Site | |
|
★ Featured
|
3,210
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
1,230
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Onlinecomponents |
1,366
|
|
Visit Site | |
| Sager |
|
500 x $4.15
|
Visit Site | |
| TME |
1,366
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site |
No issues have been reported for the NB-PTCO-162
