NC3MAH
SnapVerified
3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NC3MAH by Neutrik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

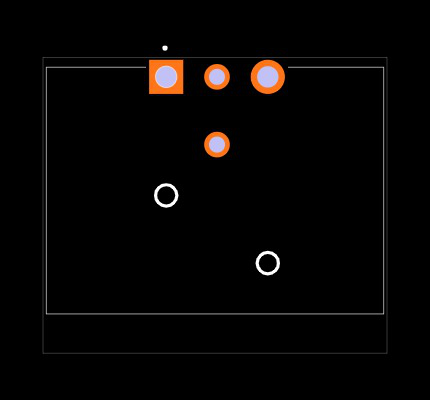

Footprint
No web preview
This Footprint is Available for

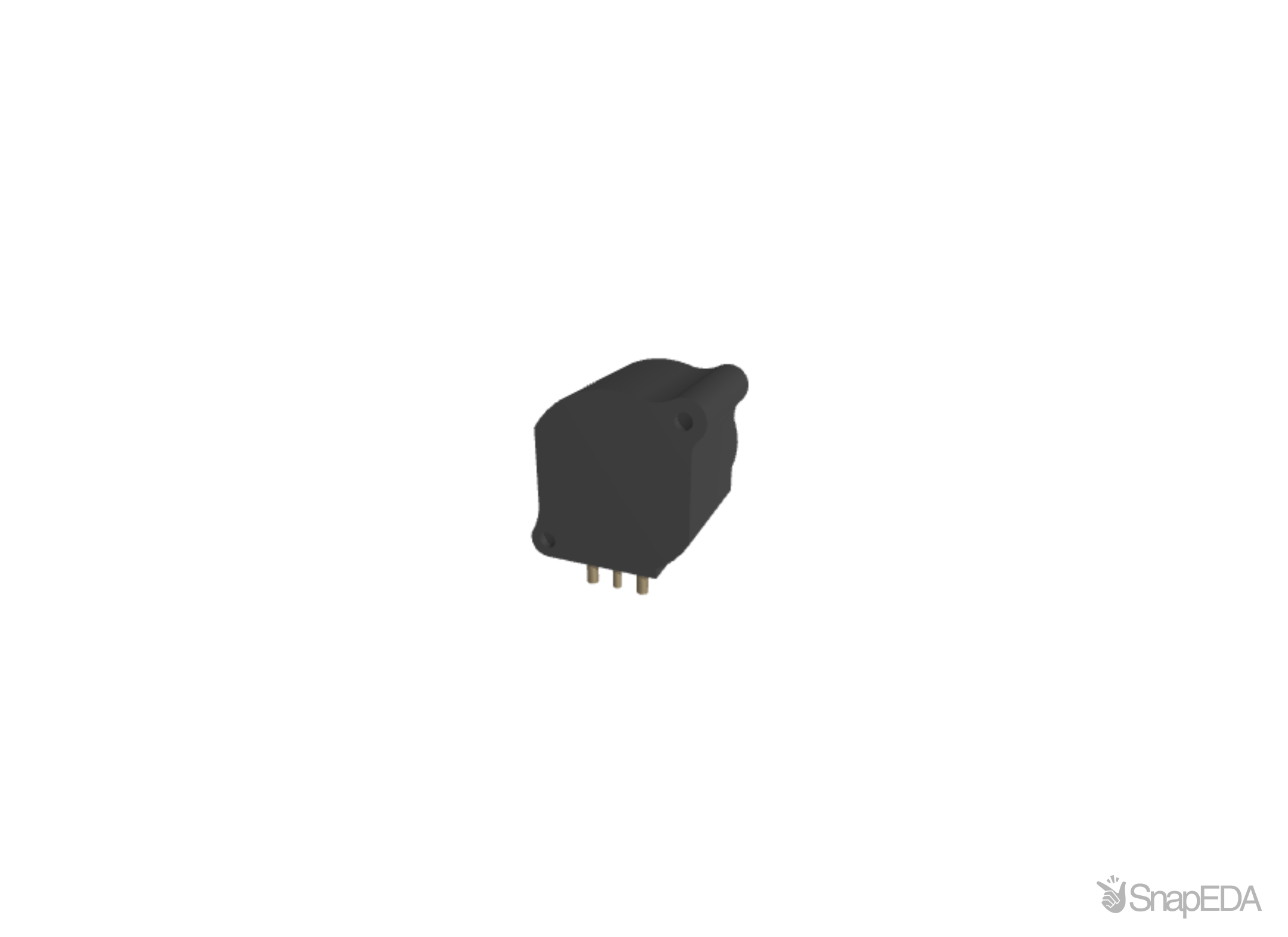

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NC3MAH
| Part Name | NC3MAH |
| Manufacturer | Neutrik |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 6 (A) |
| Contact Plating | Gold Cobalt over Enickel |
| Mounting Type | Panel Mount |
| Voltage Rating (V) | 50 V |
| Gender | Male |
| Colour | Black |
| Housing Material | Polyamide |
| Minimum Operating Temperature | -30 (°C) |
| Termination Method | Solder |
| Number Of Contacts | 3 |
| Maximum Operating Temperature | +80 (°C) |
| Body Orientation | Right Angle |
| Contact Material | Brass |
Inventory for the NC3MAH by Neutrik from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
1,204
|
|
Visit Site | |
| Farnell UK |
4,051
|
|
Visit Site | |
| Heilind Americas |
2,790
|
|
Visit Site | |
| Interstate Connecting Components |
651
|
|
Visit Site | |
| Newark |
266
|
|
Visit Site | |
| Powell Electronics |
1,021
|
|
Visit Site | |
| SOS electronic |
350
|
|
Visit Site | |
| TME |
1,570
|
|
Visit Site | |
| element14 Singapore |
4,061
|
|
Visit Site |
No issues have been reported for the NC3MAH
