NDS332P
P-Channel 20V 1A (Ta) 500mW (Ta) Surface Mount SuperSOT-3
Availability: In Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NDS332P by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

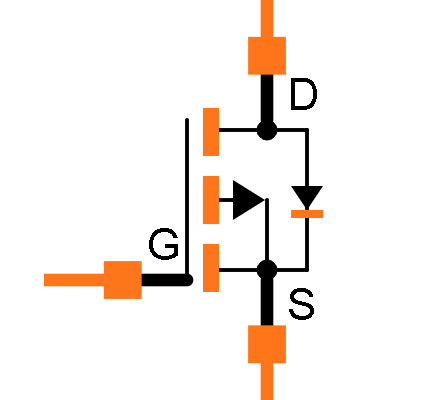

Symbol
No web preview
This Symbol is Available for

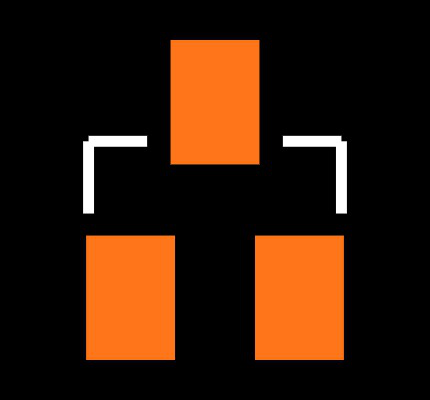

Footprint
No web preview
This Footprint is Available for

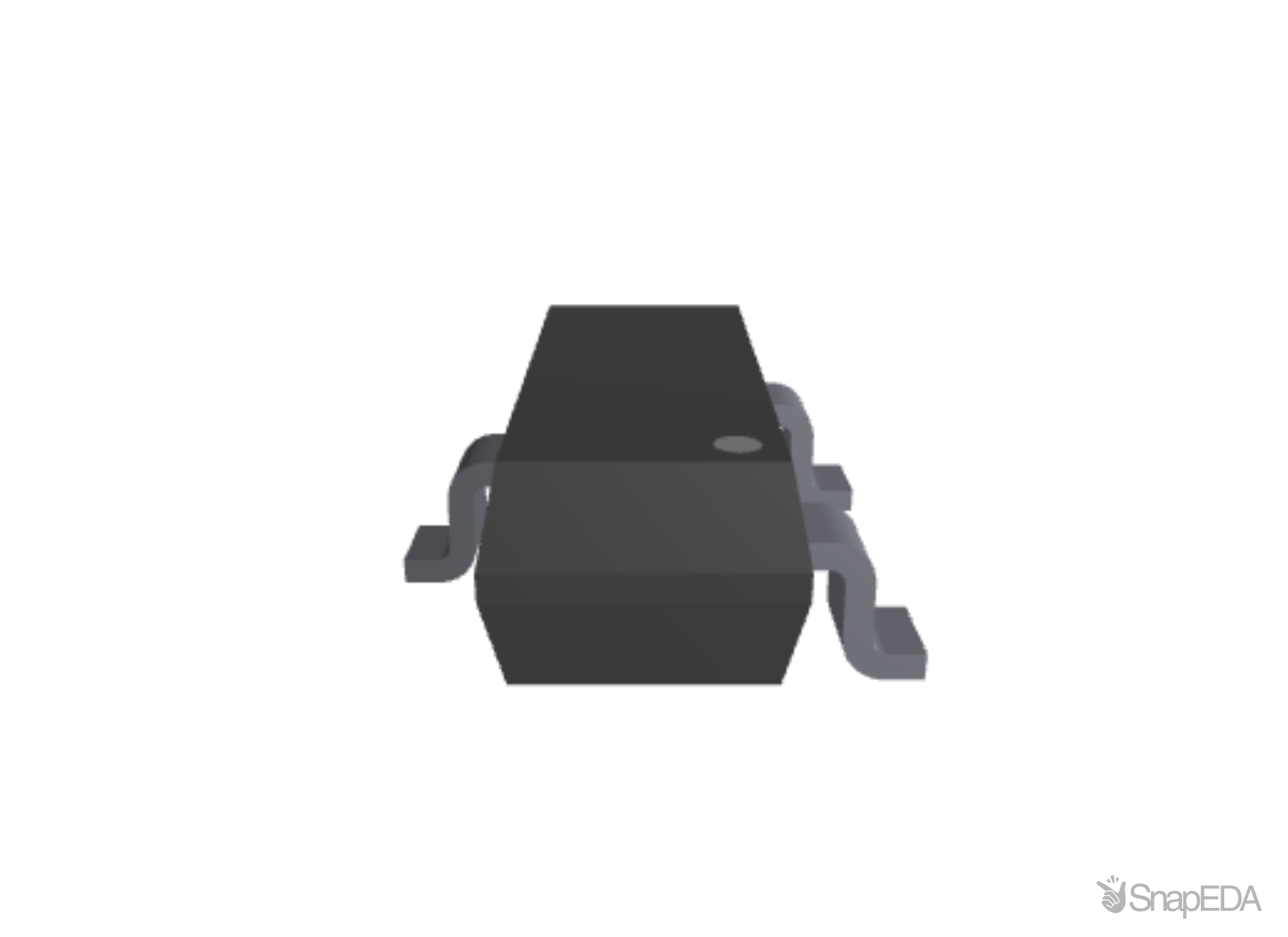

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NDS332P
| Part Name | NDS332P |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 3 |
| Maximum Drain Source Voltage (V) | 20 V |
| Width | 1.4 (mm) |
| Maximum Continuous Drain Current (A) | 1 A |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Channel Type | P |
| Maximum Gate Source Voltage (V) | -8 V, +8 V |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Length | 2.92 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 0.4 (V) |
| Typical Gate Charge Vgs | 3.7 nC @ 4.5 V |
| Height | 0.94 (mm) |
| Maximum Operating Temperature | +150 °C |
| Maximum Drain Source Resistance | 300 mΩ |
| Transistor Configuration | Single |
Inventory for the NDS332P by Onsemi from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
72,384
|
|
Visit Site | |
| Onlinecomponents |
36,000
|
|
Visit Site |
No issues have been reported for the NDS332P
