NE8FBH
SnapVerified
Horizontal PCB mount RJ45 receptacle, B-Series cutout with latch lock, max
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NE8FBH by Neutrik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

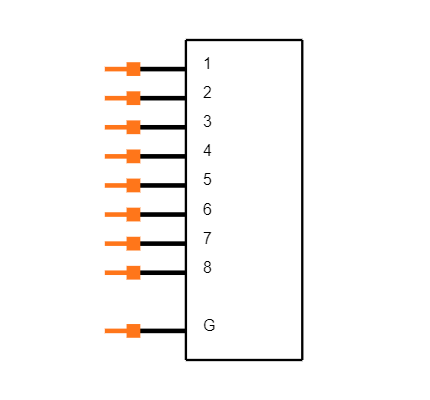

Symbol
No web preview
This Symbol is Available for

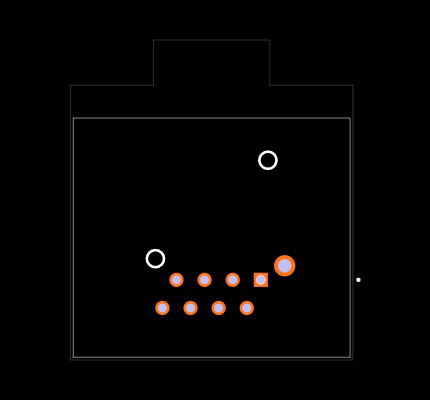

Footprint
No web preview
This Footprint is Available for

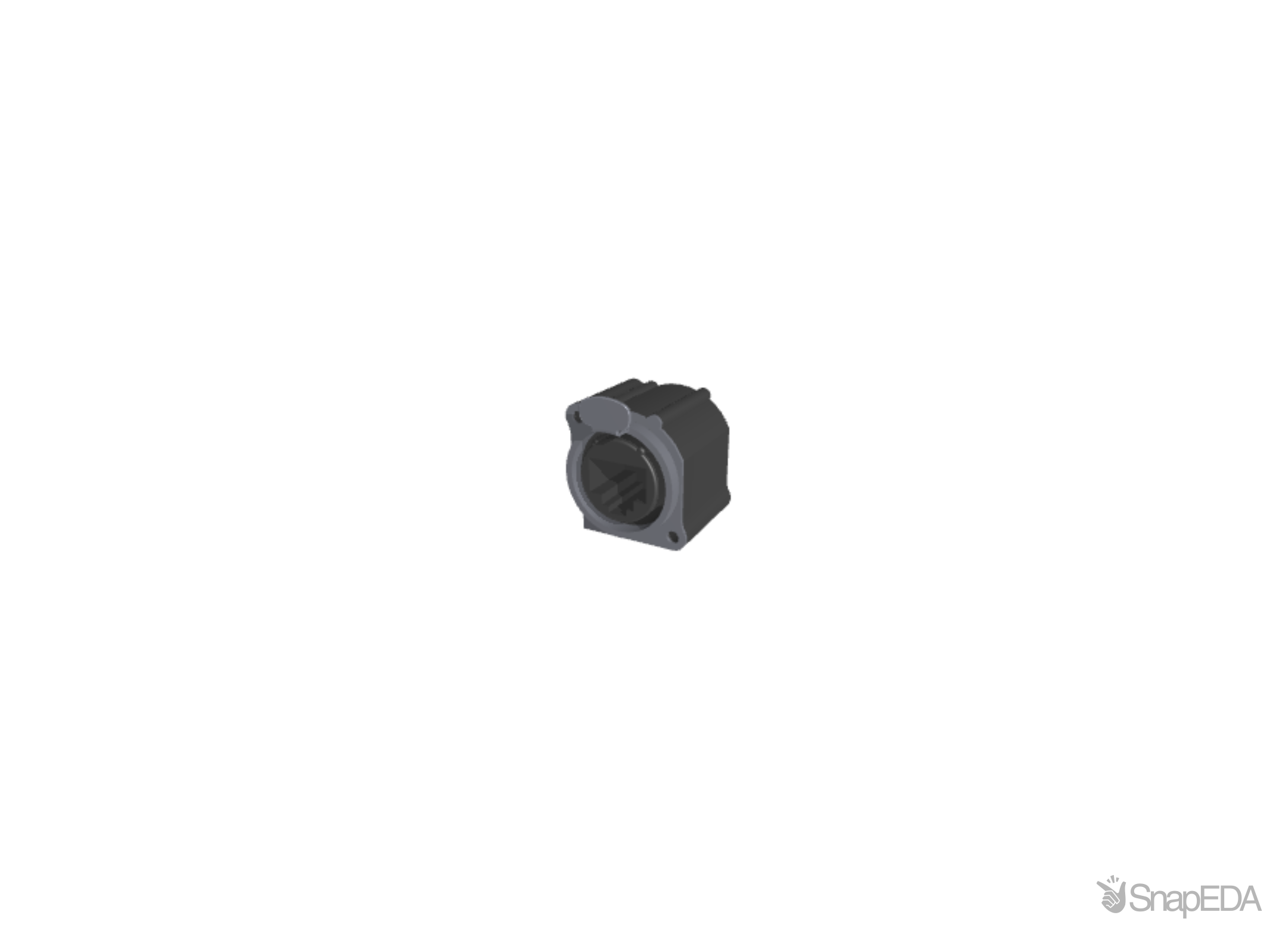

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NE8FBH
| Part Name | NE8FBH |
| Manufacturer | Neutrik |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 8P |
| Orientation | Right Angle |
| Mounting Type | PCB Mount |
| Series | etherCON |
| Depth | 24.3 (mm) |
| Width | 25 (mm) |
| Length | 25.6 (mm) |
| Ethernet Connector Type | RJ45 Connector |
| Contact Plating | Gold over Nickel |
| Gender | Female |
| Lan Category | Cat6 |
| Contact Material | Bronze |
