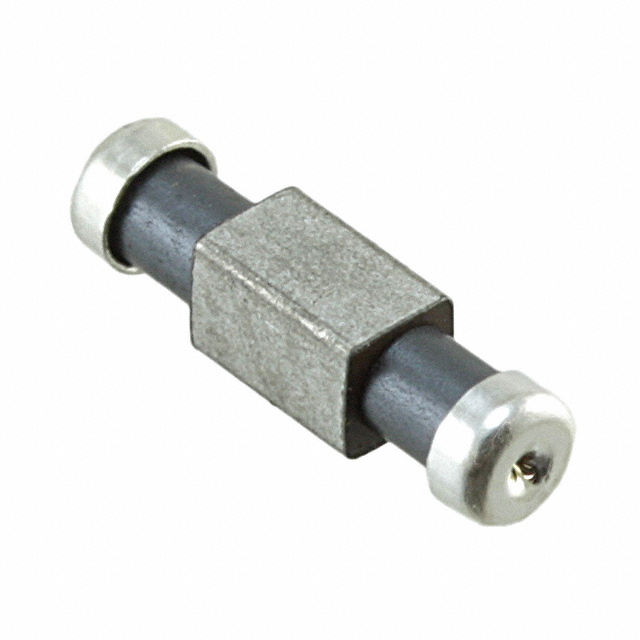

NFE61HT102F2A9L
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 1000pF 2 A 2706 (6816 Metric), 3 PC Pad
Availability: In Stock
Package Type: 2706
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NFE61HT102F2A9L by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NFE61HT102F2A9L
| Part Name | NFE61HT102F2A9L |
| Manufacturer | Murata Electronics |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=NFE61HT102F2A9%23 |
| Current Rating (A) | 2.0 |
| Series | NFE61HT |
| Voltage Rating DC (V) | 100.0 |
| Capacitance | 1e-09 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=NFE61HT102F2A9%23 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 6.8 x 1.6 x 1.6 (mm) |
| Mounting Type | Surface Mount |
| Series | NFE61H |
| Maximum Current Rating (A) | 2 (A) |
| Termination Style | Solder Pad |
| Depth | 1.6 (mm) |
| Height | 1.6 (mm) |
| Length | 6.8 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Voltage Rating (V) | 100 V dc |
| Maximum Operating Temperature | +125 (°C) |
