NFM18PC105R0J3D
SMD Capacitor with Capacitance: 1.0uF Tol. 20%. Rated Voltage: 6.3Vdc
Availability: Out of Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NFM18PC105R0J3D by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

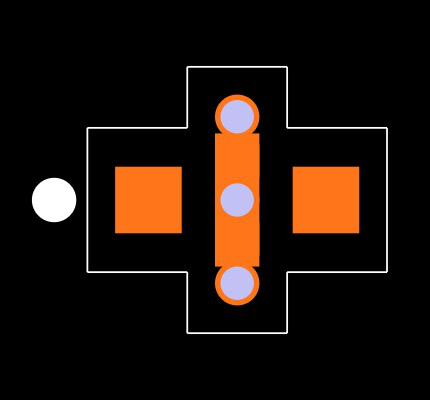

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NFM18PC105R0J3D
| Part Name | NFM18PC105R0J3D |
| Manufacturer | Murata |
| Category | Feedthrough Capacitors |
| Mounting Style | SMD |
| Simsurfing Link | https://ds.murata.co.jp/simsurfing/gateway.html?partnumbers=%5B%22NFM18PC105R0J3D%22%5D&lcid=en-us&graphop=mainall&focuspartnumberonlist=true&rgear=ytgvkjg |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=NFM18PC105R0J3%23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Series | NFM18C |
| Voltage (V) | 6.3 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +105 (°C) |
| Package/Case | 0603 (1608M) |
No issues have been reported for the NFM18PC105R0J3D
