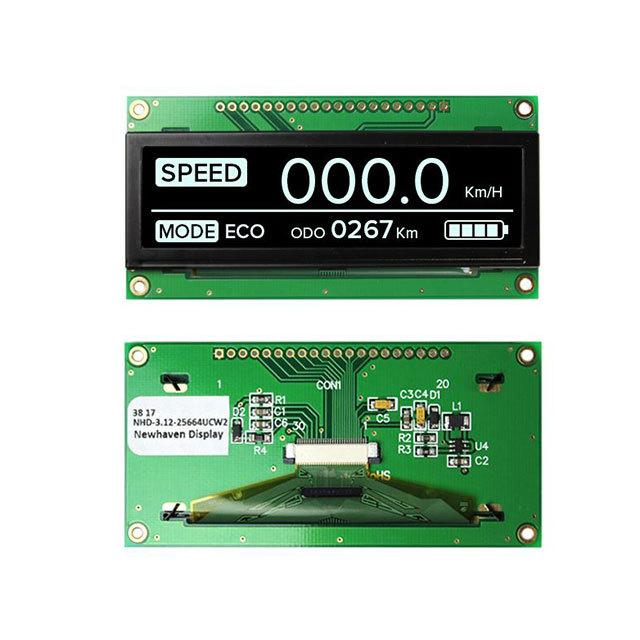

NHD-3.12-25664UCW2
- Graphic LCD Display Module - White OLED - Passive Matrix Parallel, Serial 3.12" (79.25mm) 256 x 64
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NHD-3.12-25664UCW2 by Newhaven Display and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NHD-3.12-25664UCW2
| Part Name | NHD-3.12-25664UCW2 |
| Manufacturer | Newhaven Display |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 89.2 x 44.0 x 6.0 (mm) |
| Touch Screen Type | None |
| Series | NHD |
| Interface Port S | Serial/Parallel |
| Forward Voltage (V) | 3.3 V |
| Viewing Area Dimensions | 82 x 22 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Display Colour S | White |
| Maximum Operating Temperature | +85 (°C) |
| Diagonal Display Size | 3.12 (in) |
