NLCV32T-151K-EF

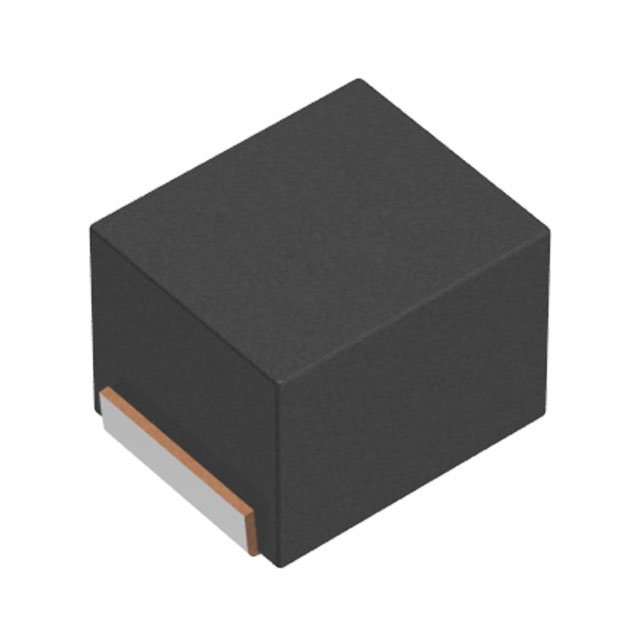

150 µH Unshielded Drum Core, Wirewound Inductor 100 mA 7.93Ohm Max 1210 (3225 Metric)
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NLCV32T-151K-EF by TDK and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

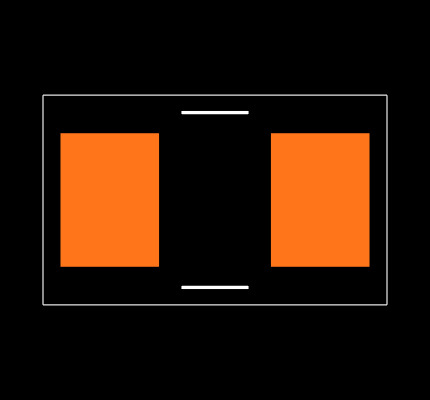

Footprint
No web preview
This Footprint is Available for

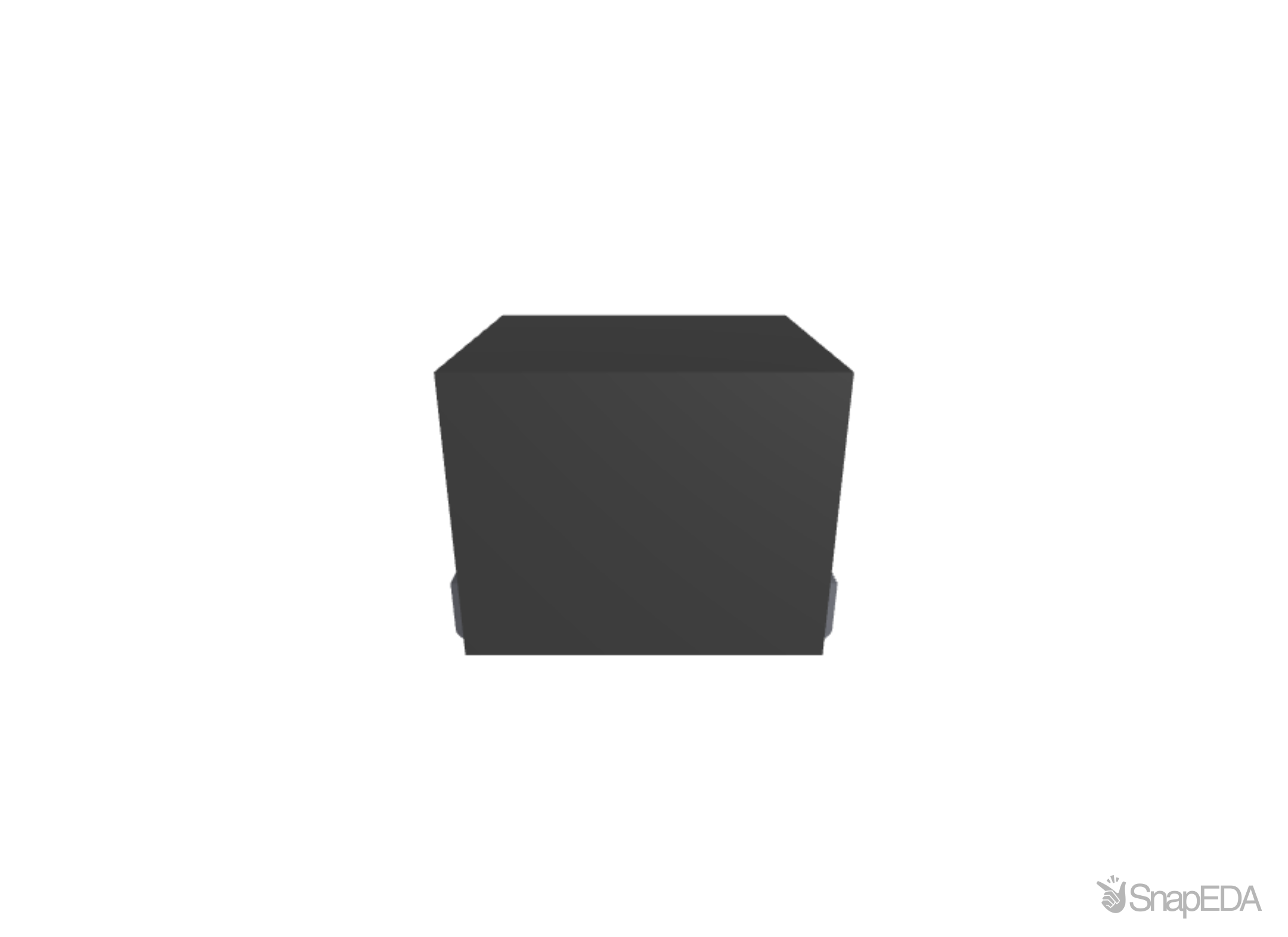

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NLCV32T-151K-EF
| Part Name | NLCV32T-151K-EF |
| Manufacturer | TDK |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Moulded | Yes |
| Maximum Dc Resistance | 7.93 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 3.2 x 2.5 x 2.2 (mm) |
| Tolerance | ±10 (%) |
| Shielded | Yes |
| Series | NLCV-EF |
| Minimum Quality Factor | 20 |
| Package Case | 1210 (3225M) |
| Length | 3.2 (mm) |
| Height | 2.2 (mm) |
| Maximum Dc Current (A) | 100 (mA) |
| Depth | 2.5 (mm) |
| Core Material | Ferrite |
| Inductance | 150 μH |
| Maximum Self Resonant Frequency | 8 (MHz) |
| Maximum Operating Temperature | +105 (°C) |
| Minimum Operating Temperature | -40 (°C) |
