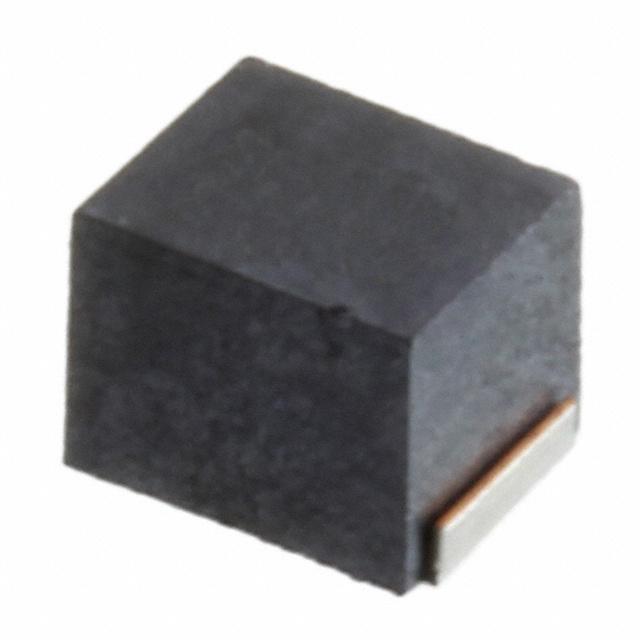

NLFV32T-151K-EF
150 µH Shielded Drum Core, Wirewound Inductor 50 mA 3.48Ohm Max 1210 (3225 Metric)
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NLFV32T-151K-EF by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

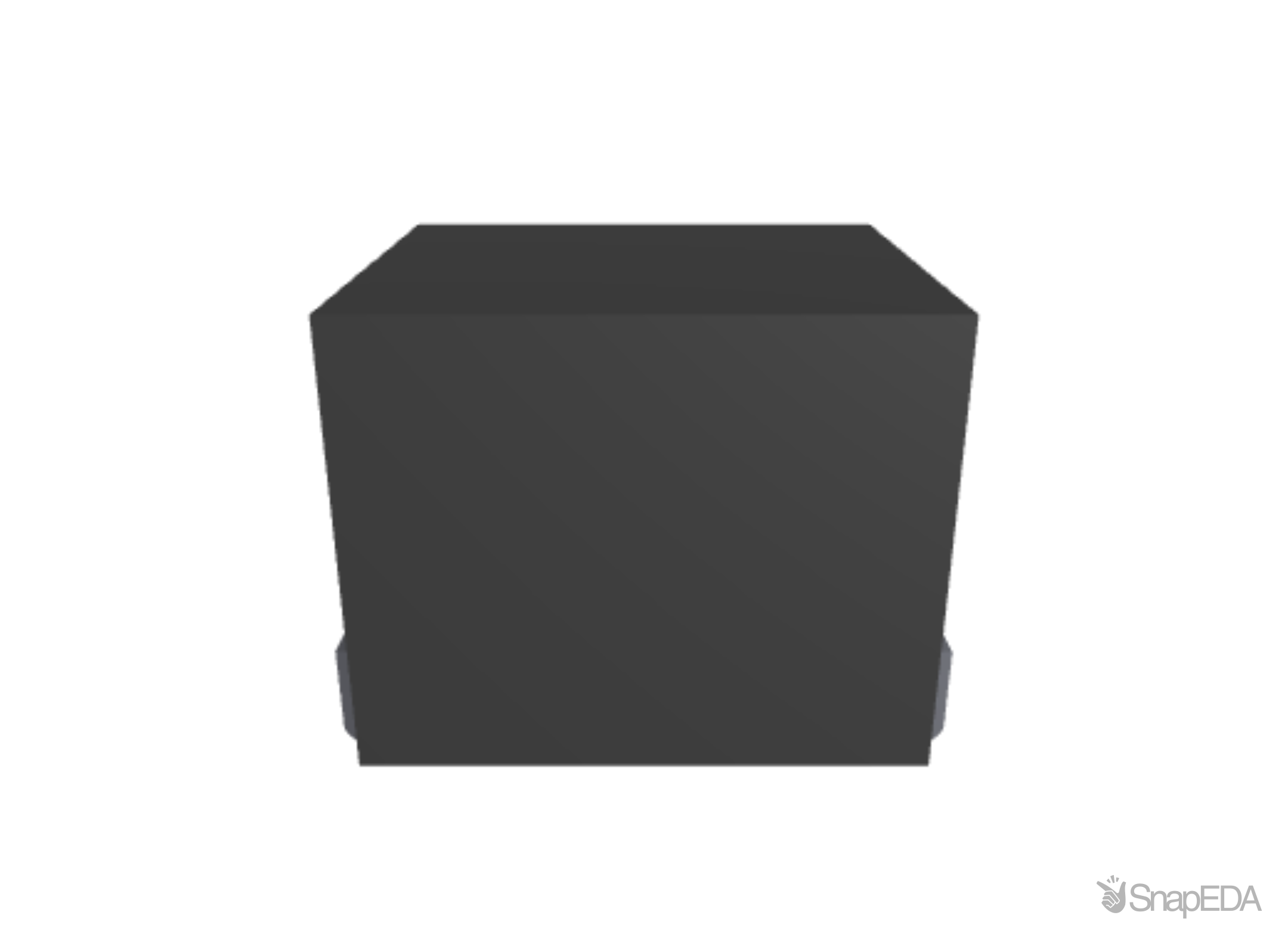

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NLFV32T-151K-EF
| Part Name | NLFV32T-151K-EF |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 2.9 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 3.2 x 2.5 x 2.2 (mm) |
| Shielded | Yes |
| Series | NLFV-EF |
| Depth | 2.5 (mm) |
| Height | 2.2 (mm) |
| Package Case | 3225 |
| Length | 3.2 (mm) |
| Core Material | Ferrite |
| Inductance | 150 μH |
| Maximum Dc Current (A) | 50 (mA) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±10 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the NLFV32T-151K-EF by TDK Corporation from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,701
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
2,000 x $0.14
|
Visit Site | |
| Farnell UK |
415
|
|
Visit Site | |
| Newark |
415
|
|
Visit Site | |
| RS UK |
1,775
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| element14 Singapore |
415
|
|
Visit Site |
No issues have been reported for the NLFV32T-151K-EF
