NSI45020AT1G
Current Regulator Regulator High/Low-Side 20mA SOD-123
Availability: In Stock
Package Type: SOD-123-2
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NSI45020AT1G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

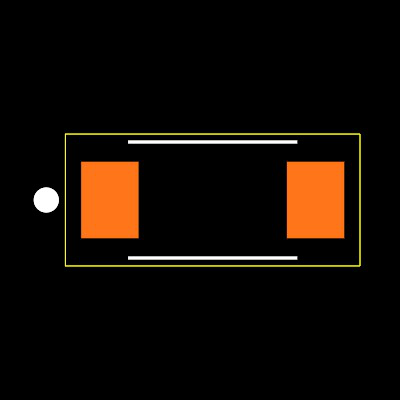

BuildFootprint
No web preview
This Footprint is Available for

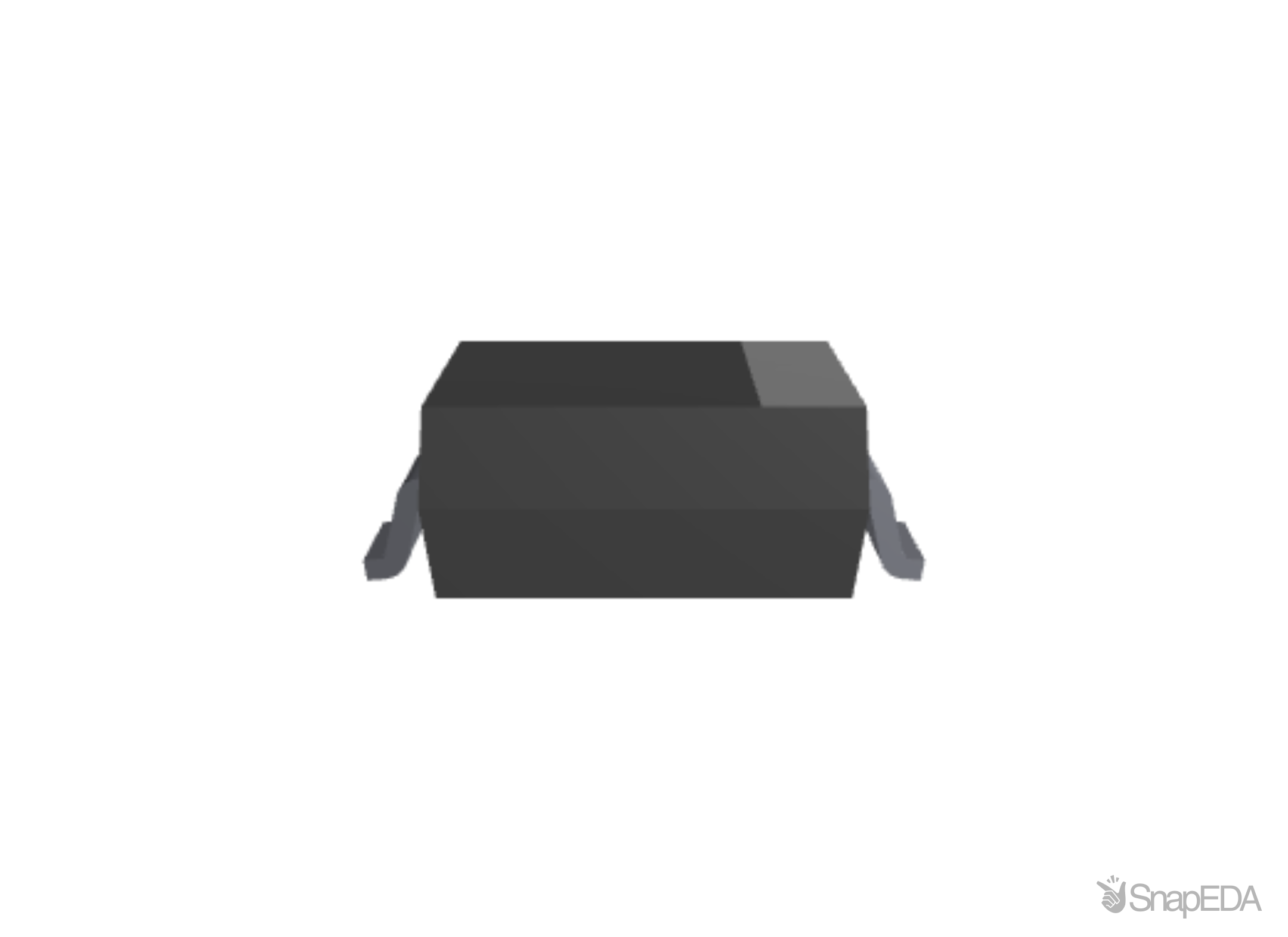

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NSI45020AT1G
| Part Name | NSI45020AT1G |
| Manufacturer | onsemi |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Output Current (A) | 20 (mA) |
| Dimming Operation | PWM |
| Ac Or Dc Input Voltage (V) | dc |
| Application | AC Lighting Panel, Automotive Lighting, Channel Lettering, Decorative Lighting, Signage Lighting, Switch Contact Wetting |
| Maximum Output Power | 460 (mW) |
| Input Voltage (V) | 45 V |
| Package Type | SOD-123 |
| Maximum Output Voltage (V) | 7.5 (V) |
| Number Of Pins | 2 |
