NSIM-5-B
Nano SIM Card Connectors, 7 Positions, Connector, Push In, Pull Out, Surface Mount, 1.4 mm Height Above Board, Gold Flash
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NSIM-5-B by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

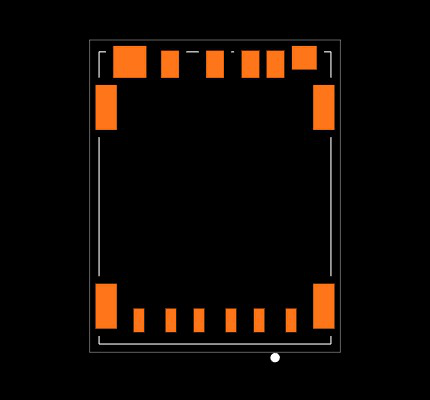

Footprint
No web preview
This Footprint is Available for

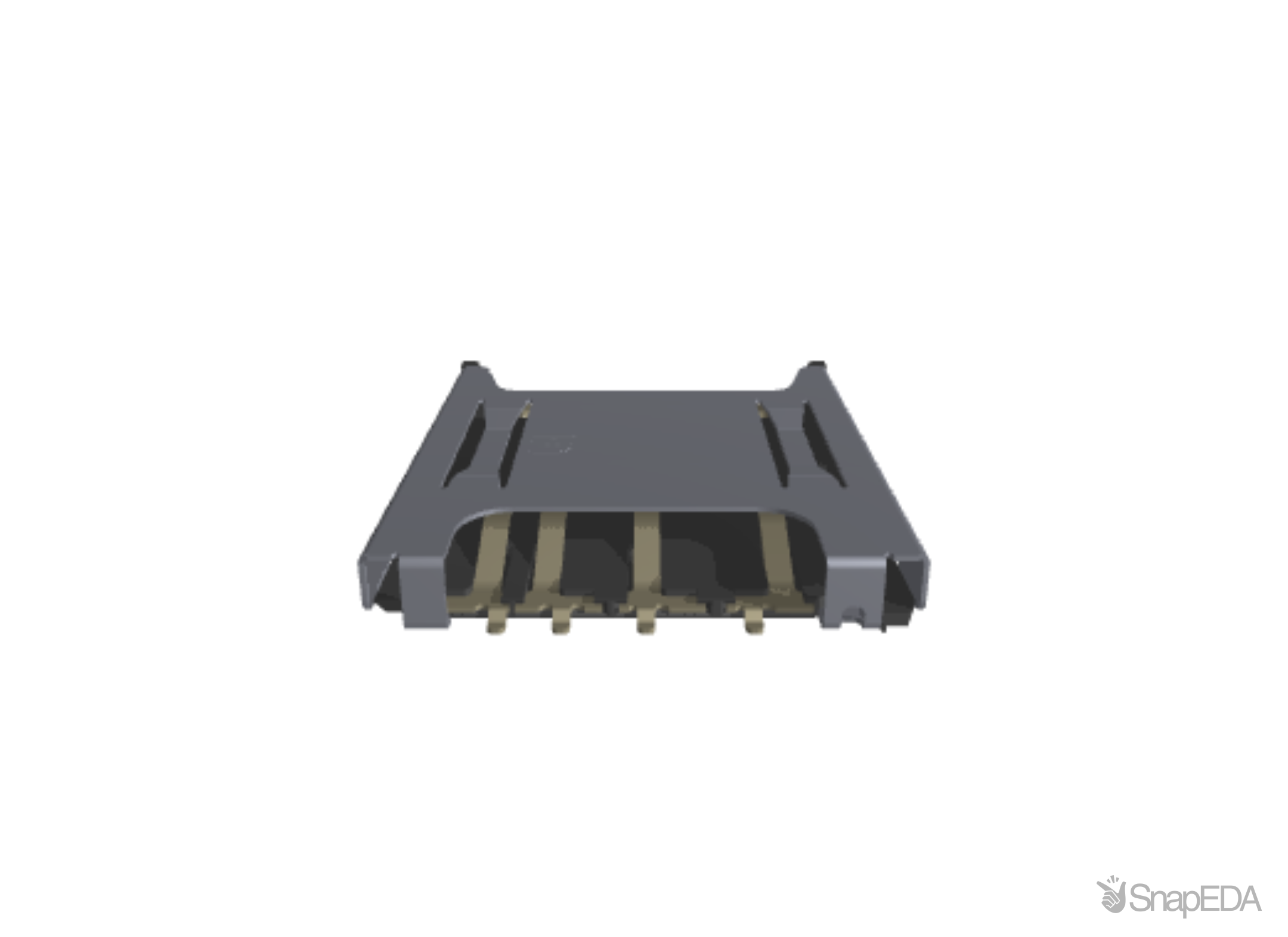

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NSIM-5-B
| Part Name | NSIM-5-B |
| Manufacturer | Same Sky |
| Card Detect Switch | Yes |
| Height Above Board (mm) | 1.4 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/nsim-5-b |
| Connector Type | Connector |
| Contact Finish | Gold Plated |
| Mounting Style | Surface Mount |
| Removal Method | Push In, Pull Out |
| Life Cycle Status | New Product |
| Contact Finish Thickness | Gold Flash |
| Number of Positions | 7 |
| RoHS | True |
| Compatible Card | Nano SIM Card |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
