NTC0805J1K5
NTC Thermistor 1.5k 0805 (2012 Metric)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NTC0805J1K5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

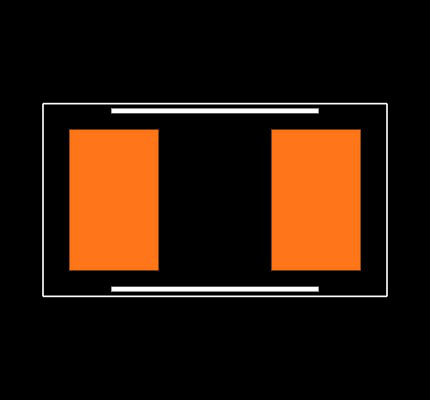

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NTC0805J1K5
| Part Name | NTC0805J1K5 |
| Manufacturer | TE Connectivity |
| Dimensions | 2 x 1.25 x .5 |
| Package | 0805 |
| Size Code | 0805 |
| Packaging Method | Taped & Reeled |
| Resistance | 1.5K |
| TE Internal Number | 1624350-2 |
| Power Rating | .125 |
| Tolerance | 5% |
| RoHS | True |
