NTC0805J3K3

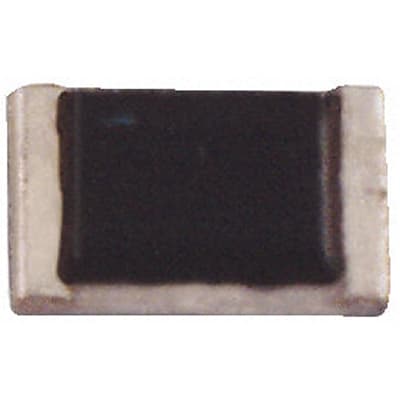

3.3kOhms 125mW 0805 Compensation NTC Thermistor, 4s, 2 x 1.25 x 0.5mm | TE Connectivity NTC0805J3K3
Availability: In Stock
Package Type: 0805
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NTC0805J3K3 by TE Connectivity Passive Product and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NTC0805J3K3
| Part Name | NTC0805J3K3 |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Dimensions | 2 x 1.25 x .5 |
| Size Code | 0805 |
| Package | 0805 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 1624361-2 |
| Resistance | 3.3K |
| Power Rating | .125 |
| Tolerance | 5% |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
