NTC0805J5K0
5kOhms 125mW 0805 Compensation NTC Thermistor, 4s, 2 x 1.25 x 0.5mm | TE Connectivity NTC0805J5K0
Availability: In Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NTC0805J5K0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

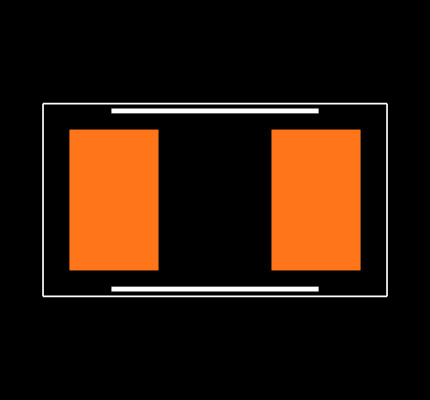

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NTC0805J5K0
| Part Name | NTC0805J5K0 |
| Manufacturer | TE Connectivity |
| Category | Electronic Components |
| Dimensions | 2 x 1.25 x .5 |
| Package | 0805 |
| Size Code | 0805 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 1624365-1 |
| Resistance | 5K |
| Power Rating | .125 |
| Tolerance | 5% |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2 x 1.25 x 0.5 (mm) |
| Maximum Power Rating | 125 (mW) |
| Series | NTC |
| Length | 2 (mm) |
| Height | 0.5 (mm) |
| Depth | 1.25 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Thermal Time Constant | 4 (s) |
| Resistance @ 25 °C | 5 (kΩ) |
| Tolerance | ±5 (%) |
| Maximum Operating Temperature | +125 (°C) |
| Temperature Coefficient Type | NTC |
| Package/Case | 0805 (2012M) |
