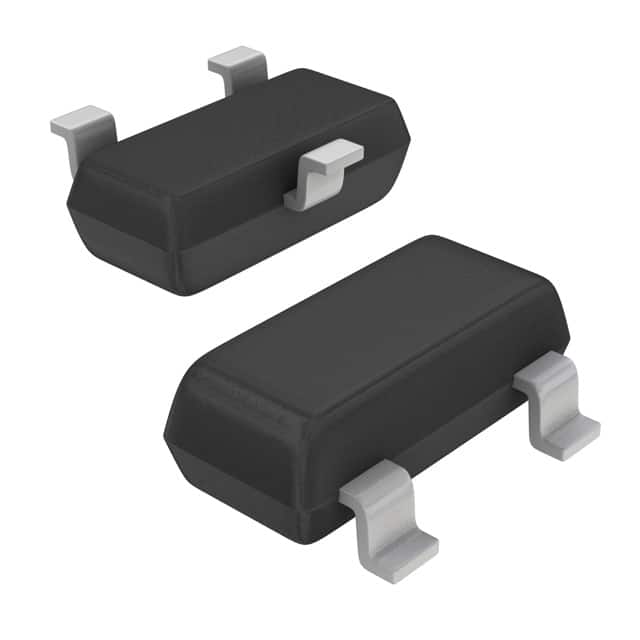

NUP2105LT1G
44V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Availability: Out of Stock
Package Type: SOT-23-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the NUP2105LT1G by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

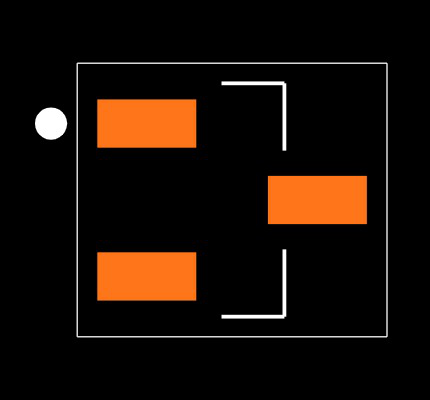

Footprint
No web preview
This Footprint is Available for

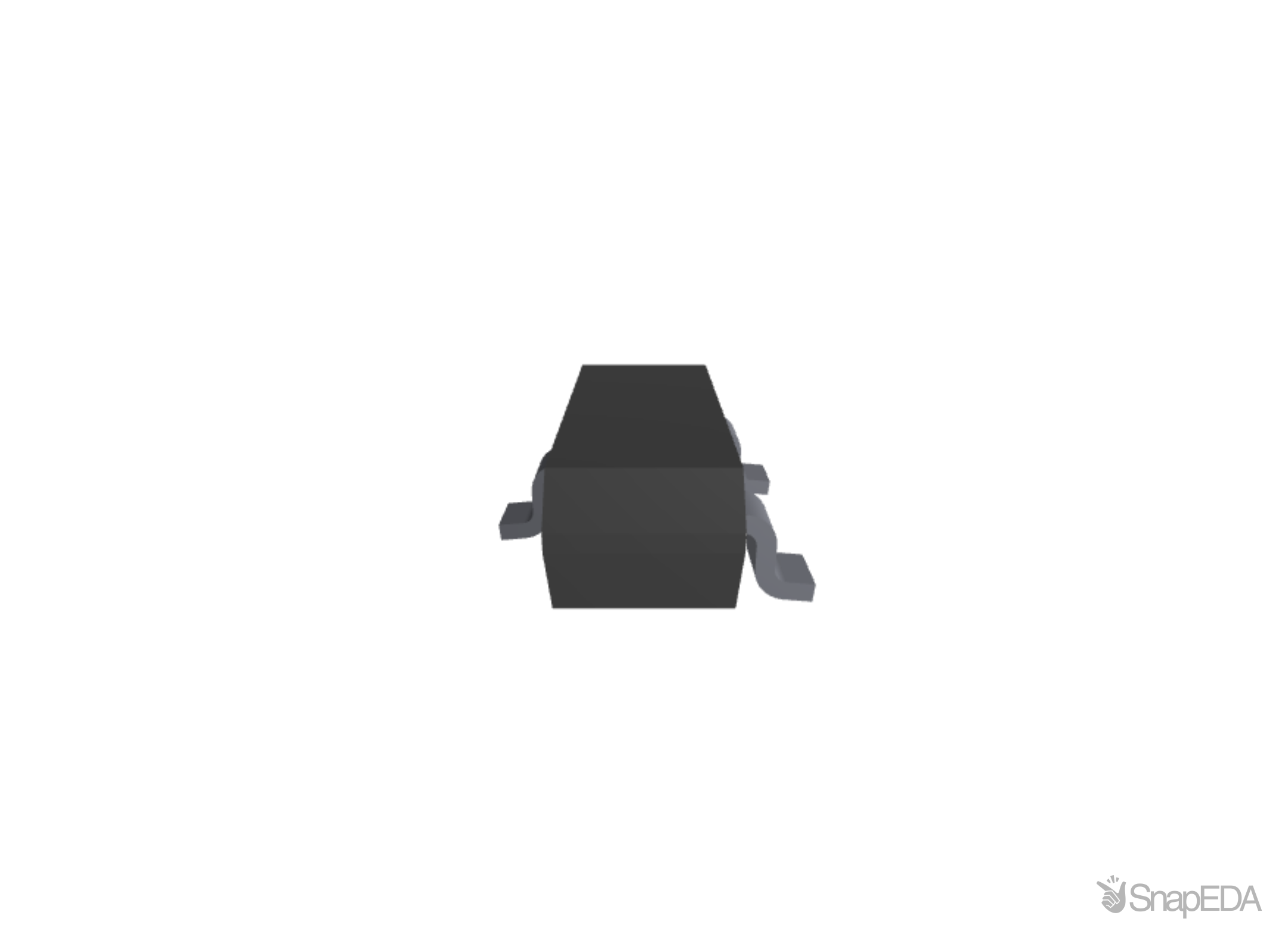

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the NUP2105LT1G
| Part Name | NUP2105LT1G |
| Manufacturer | onsemi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 8 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 24 (V) |
| Dimensions | 2.9 x 1.3 x 0.94 (mm) |
| Minimum Breakdown Voltage (V) | 26.2 (V) |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 100 (nA) |
| Esd Protection | Yes |
| Height | 0.94 (mm) |
| Width | 1.3 (mm) |
| Length | 2.9 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 44 (V) |
| Diode Configuration | Series |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 350 (W) |
| Test Current (A) | 1 (mA) |
No issues have been reported for the NUP2105LT1G
