OAC-5A

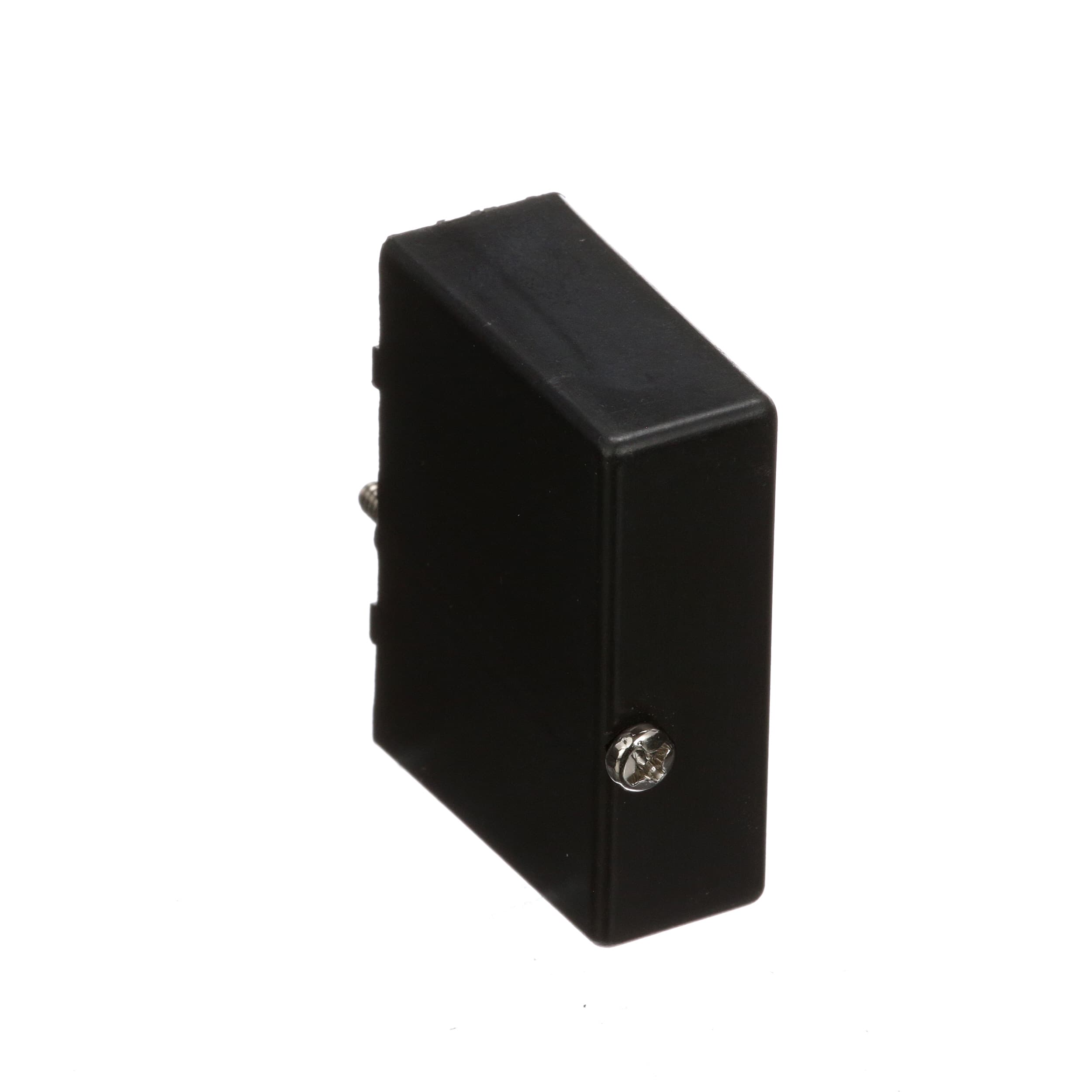

Module, Control, Ouput, Digital, Circuit Board, 20mA, 5VDC, PCB, OAC Series | TE Connectivity OAC-5A
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OAC-5A by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OAC-5A
| Part Name | OAC-5A |
| Manufacturer | TE Connectivity |
| Dimensions (L x W x H) (Approximate) | 1.697 x .598 x 1.248 |
| Insulation Initial Dielectric Between Contacts & Coil | 4000 |
| Product Weight | 1.38 |
| Switch Arrangement | 1 Form A (SPST-NO) |
| Contact Arrangement | 1 Form A (SPST-NO) |
| R-Switch & slimSSR Relays | No |
| TE Internal Number | 2-1393028-8 |
| Output Type | AC |
| Output Voltage (Max) (V) | 280 |
| Input Voltage (V) | 3 – 8 |
| RoHS | True |
| Relay Mounting Type | Printed Circuit Board |
| Case Color | Black |
| Coupling | Optical |
| Operating Temperature Range | -30 – 80 |
| Output Current Rating (A) | .05 – 3 |
| Input Voltage Typical (V) | 5 |
| Category | PLCs & HMIs |
| Output Current (Min) (A) | .05 |
| Power Relay Type | Solid State |
| Output Voltage Rating (AC Relays) (V) | 24 – 280 |
| Relay Housing Style | Industry Standard |
| Relay Termination Type | Printed Circuit Terminals |
| Output Switching | Zero |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the OAC-5A by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
292
|
|
Visit Site | |
|
★ Featured
|
73
|
|
Visit Site | |
| Newark |
|
100 x $20.88
|
Visit Site | |
| Onlinecomponents |
594
|
|
Visit Site | |
| Relay Specialties |
3
|
|
Visit Site | |
| Verical |
4
|
3 x $21.08
|
Visit Site | |
| element14 Singapore |
|
200 x $23.00
|
Visit Site |
No issues have been reported for the OAC-5A
