OP177GPZ
Ultraprecision Operational Amplifier
Availability: In Stock
Package Type: PDIP-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OP177GPZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

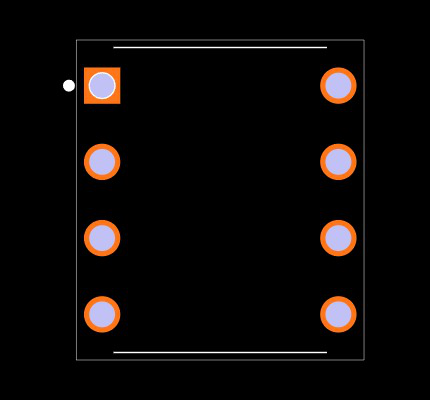

BuildFootprint
No web preview
This Footprint is Available for

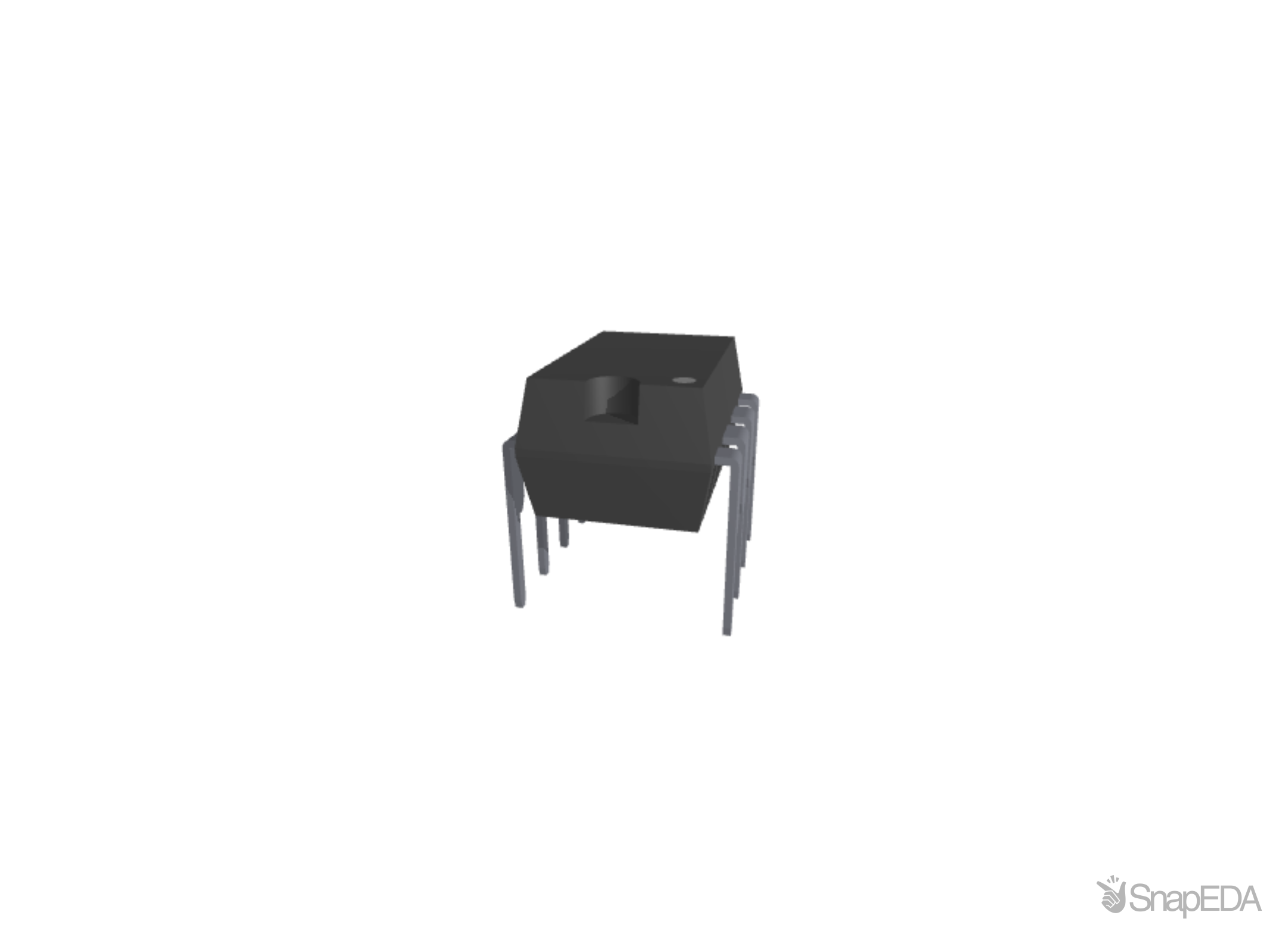

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OP177GPZ
| Part Name | OP177GPZ |
| Manufacturer | Analog Devices |
| Product Category | Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C) |
| Package | PLASTIC DIP |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 11/15/2006 5:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/op177.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±5 V, ±9 V |
| Typical Voltage Gain (V) | 135.6 dB |
| Dimensions | 9.27 x 7.24 x 3.43 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 0.3 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 600 (kHz) |
| Width | 7.24 (mm) |
| Length | 9.27 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Precision |
| Height | 3.43 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
Inventory for the OP177GPZ by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,016
|
|
Visit Site | |
|
★ Featured
|
1,464
|
|
Visit Site | |
|
★ Featured
|
4,300
|
200 x $1.50
|
Visit Site | |
| Arrow Europe |
888
|
|
Visit Site |
No issues have been reported for the OP177GPZ
If you experienced any issues with the symbol or footprint, please report it.
