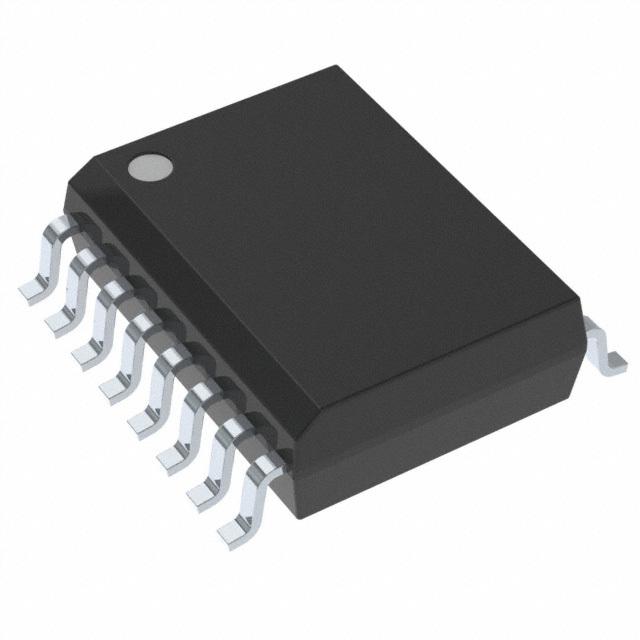

OP400
General Purpose Amplifier 4 Circuit Differential 14-PDIP
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OP400 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

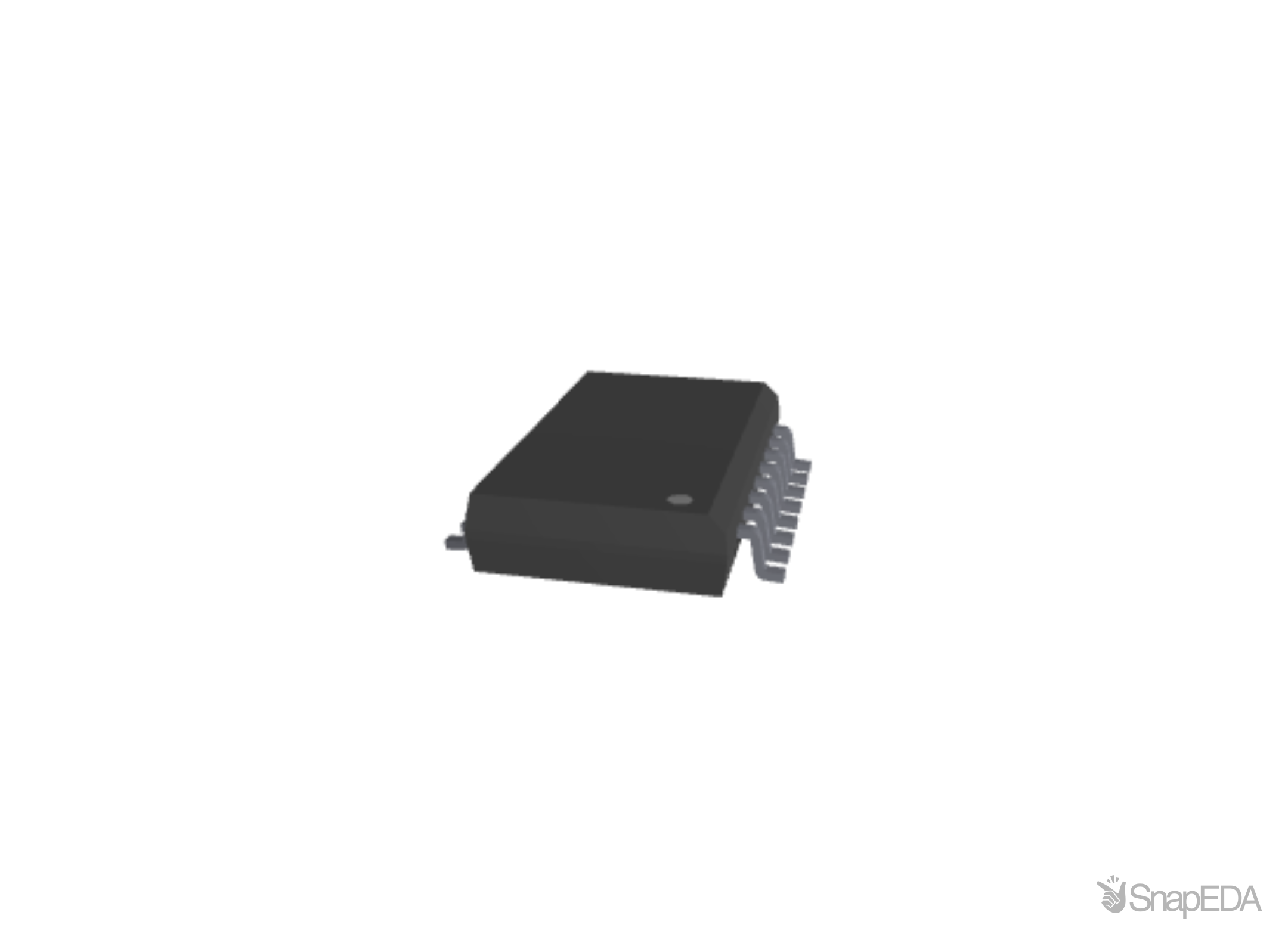

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OP400
| Part Name | OP400 |
| Manufacturer | Analog Devices |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 19.94 x 7.87 x 3.56 (mm) |
| Typical Slew Rate | 0.15 (V/µs) |
| Typical Gain Bandwidth Product | 500 (kHz) |
| Width | 7.87 (mm) |
| Maximum Operating Frequency | 1 kHz |
| Input Offset Current (A) | 3.5 (nA) |
| Power Supply Type | Dual |
| Output Type | Differential |
| Package Type | CERDIP |
| Typical Voltage Gain (V) | 5000 V/mV |
| Maximum Operating Temperature | +85 °C |
| Length | 19.94 (mm) |
| Pin Count | 14 |
| Typical Dual Supply Voltage (V) | ±12.5 (V) |
| Typical Input Voltage Noise Density (V) | 22 (nV/√Hz) |
| Offset Voltage (V) | 350 (µV) |
| Mounting Type | Through Hole |
| Input Voltage Range (V) | ±4.5 to ±18 V |
| Number Of Channels Per Chip | 4 |
| Height | 3.56 (mm) |
| Minimum Operating Temperature | -25 °C |
| Amplifier Type | Low Power |
| Maximum Input Voltage (V) | ±18 V |
| Minimum Input Voltage (V) | ±4.5 V |
Inventory for the OP400 by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,200
|
39 x $8.97
|
Visit Site |
No issues have been reported for the OP400
