OP470
General Purpose Amplifier 4 Circuit - 14-CERDIP
Availability: Out of Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OP470 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

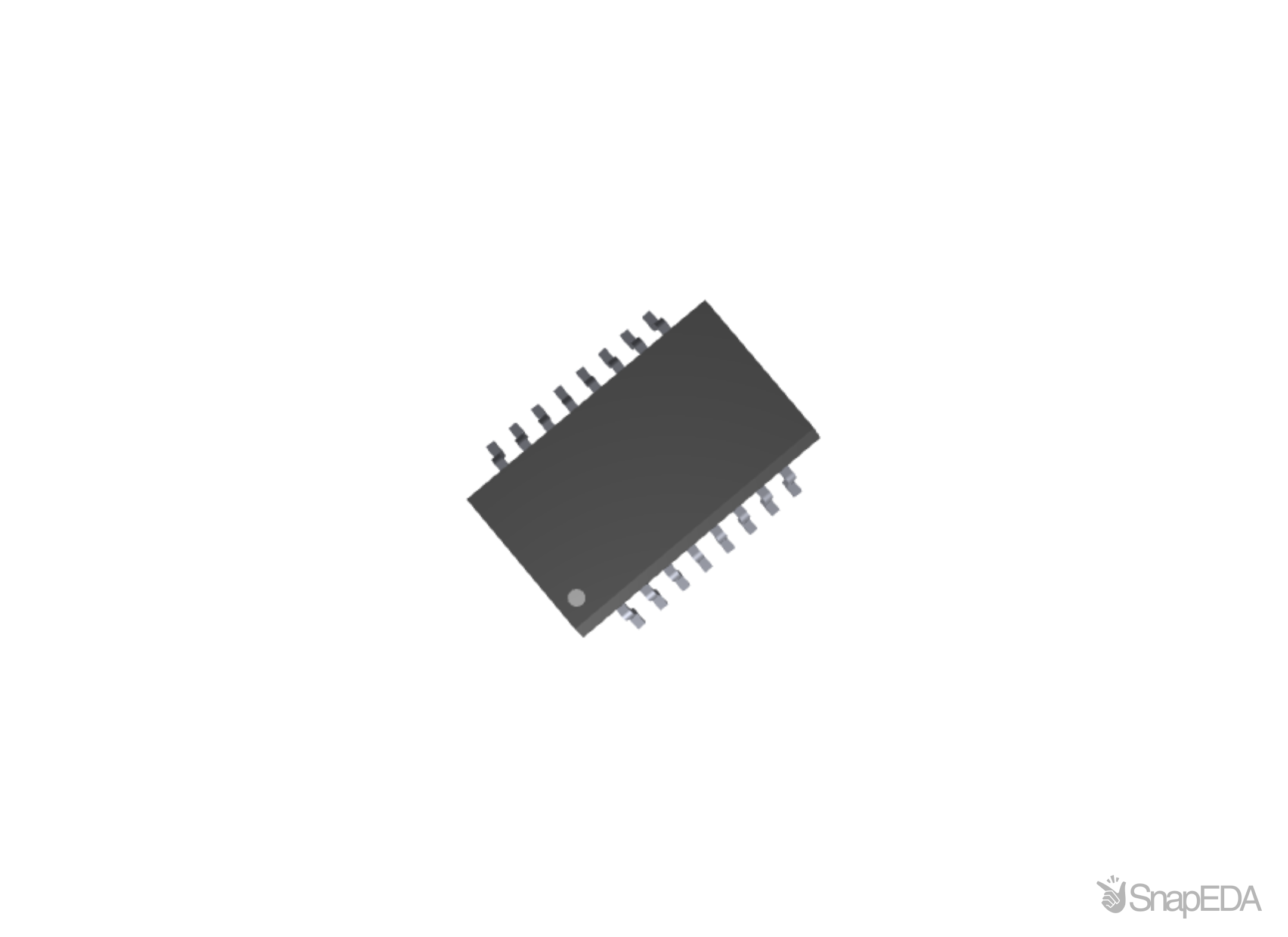

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OP470
| Part Name | OP470 |
| Manufacturer | Analog Devices |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Rail To Rail | No |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±5 V, ±9 V |
| Typical Input Voltage Noise Density (V) | 3.8 (nV/√Hz) |
| Dimensions | 10.5 x 7.6 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 2 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 4 |
| Typical Gain Bandwidth Product | 6 (MHz) |
| Height | 2.35 (mm) |
| Width | 7.6 (mm) |
| Length | 10.5 (mm) |
| Package Type | SOIC W |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain (V) | 124.6 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
No issues have been reported for the OP470
