OPA124U
Low Noise Precision Difet Operational Amplifier
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA124U by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

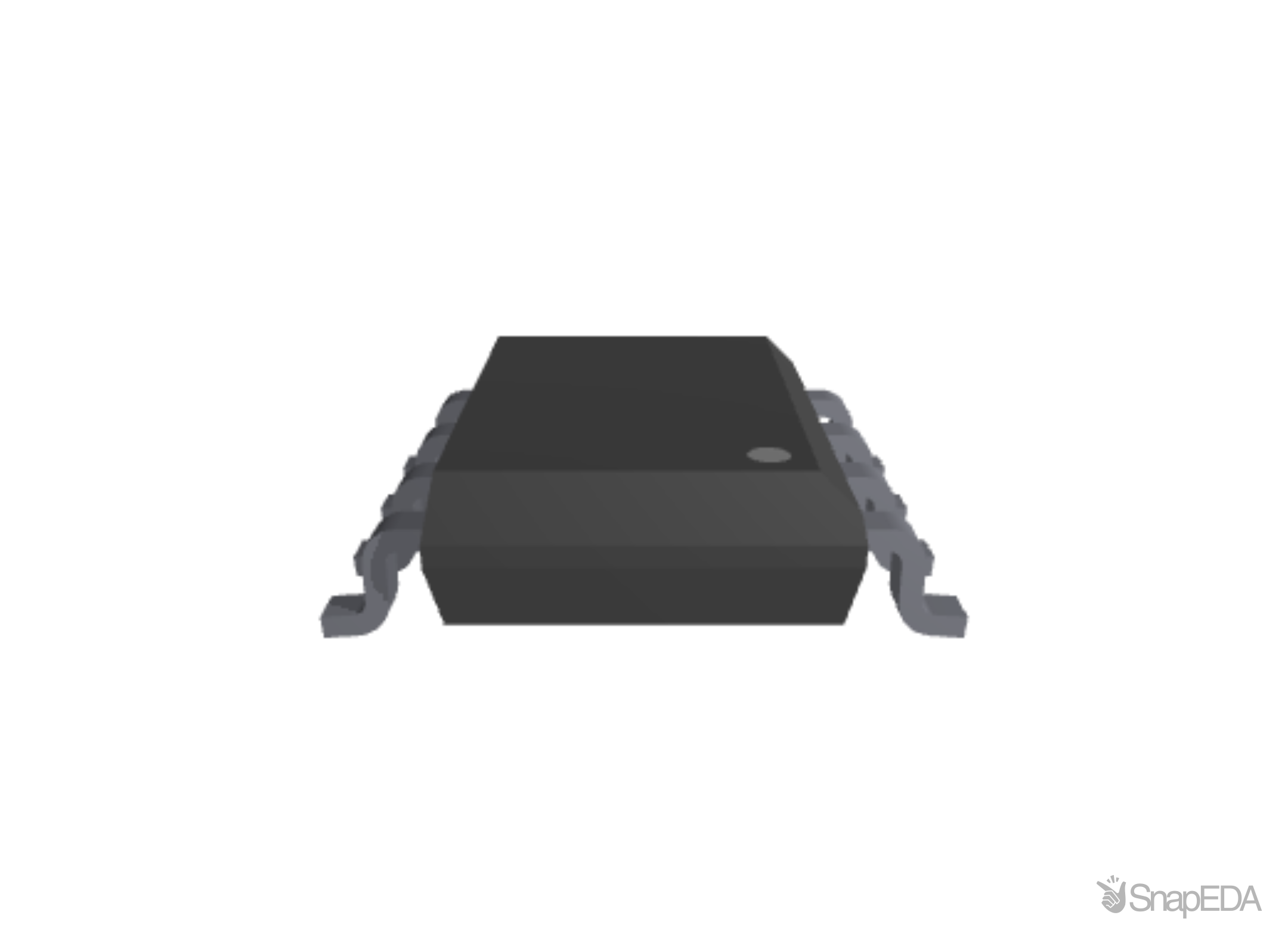

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA124U
| Part Name | OPA124U |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Typical Input Voltage Noise Density (V) | 40 (nV/√Hz) |
| Dimensions | 4.9 x 3.91 x 1.58 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1.6 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | No |
| Height | 1.58 (mm) |
| Width | 3.91 (mm) |
| Length | 4.9 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -25 °C |
| Amplifier Type | Low Noise, Precision |
| Typical Voltage Gain (V) | 125 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
