OPA2277PA
10µV, 0.1µV/˚C, High-Precision, Low-Power Operational Amplifier
Availability: In Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA2277PA by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

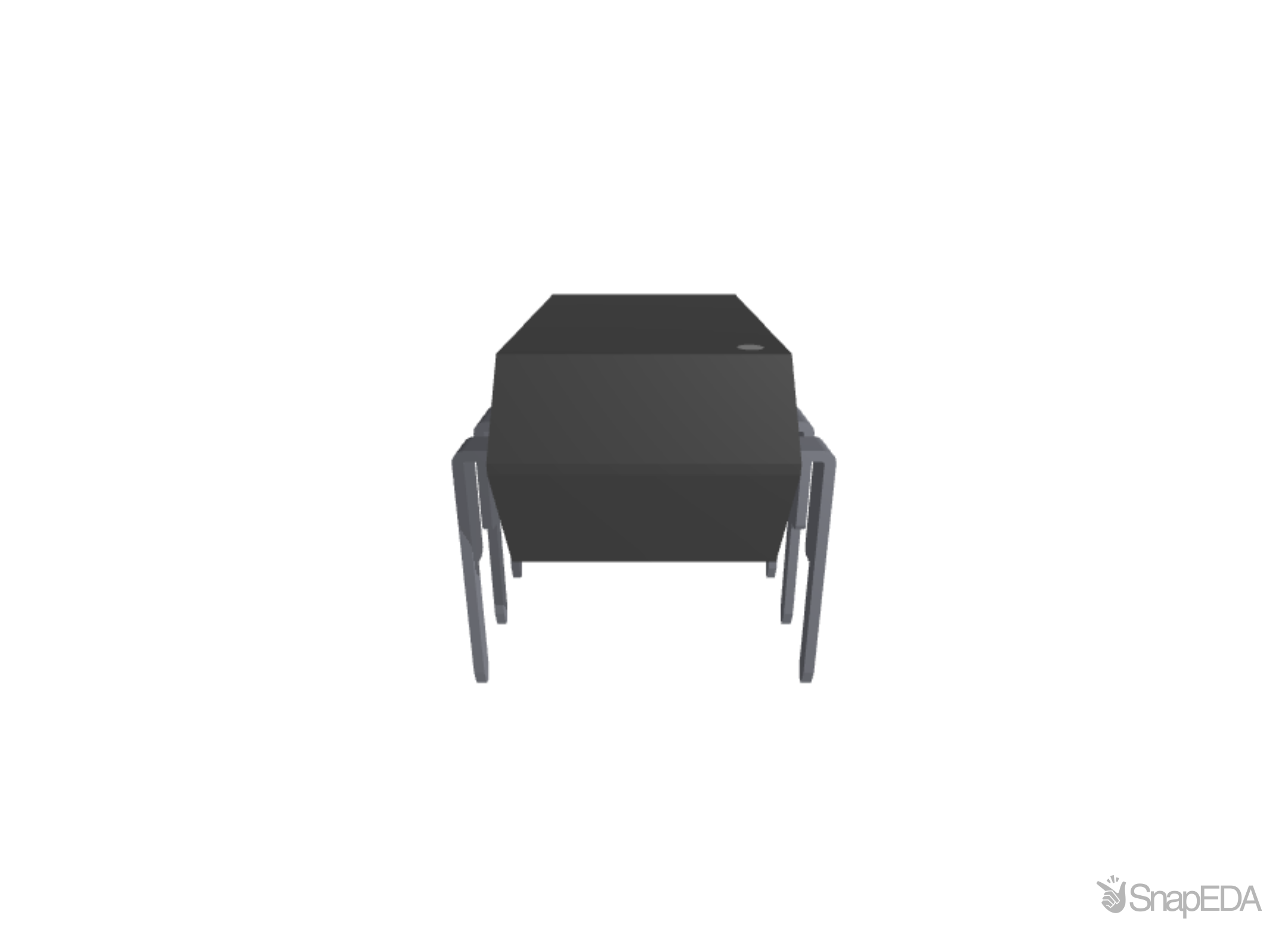

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA2277PA
| Part Name | OPA2277PA |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 140 dB |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| Typical Input Voltage Noise Density (V) | 12 (nV/√Hz) |
| Dimensions | 9.81 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 0.8 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 1 (MHz) |
| Width | 6.35 (mm) |
| Length | 9.81 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Precision |
| Height | 4.57 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
Inventory for the OPA2277PA by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
33,404
|
98 x $3.09
|
Visit Site | |
|
★ Featured
|
1,607
|
|
Visit Site | |
|
★ Featured
|
1,150
|
42 x $7.27
|
Visit Site | |
| Texas Instruments |
134,513
|
|
Visit Site | |
| Verical |
15,792
|
|
Visit Site |
No issues have been reported for the OPA2277PA
