OPA2320AIDGKT
Dual, precision, zero-crossover, 20-MHz, 0.9-pA Ib, RRIO, CMOS operational amplifier
Availability: In Stock
Package Type: VSSOP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA2320AIDGKT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

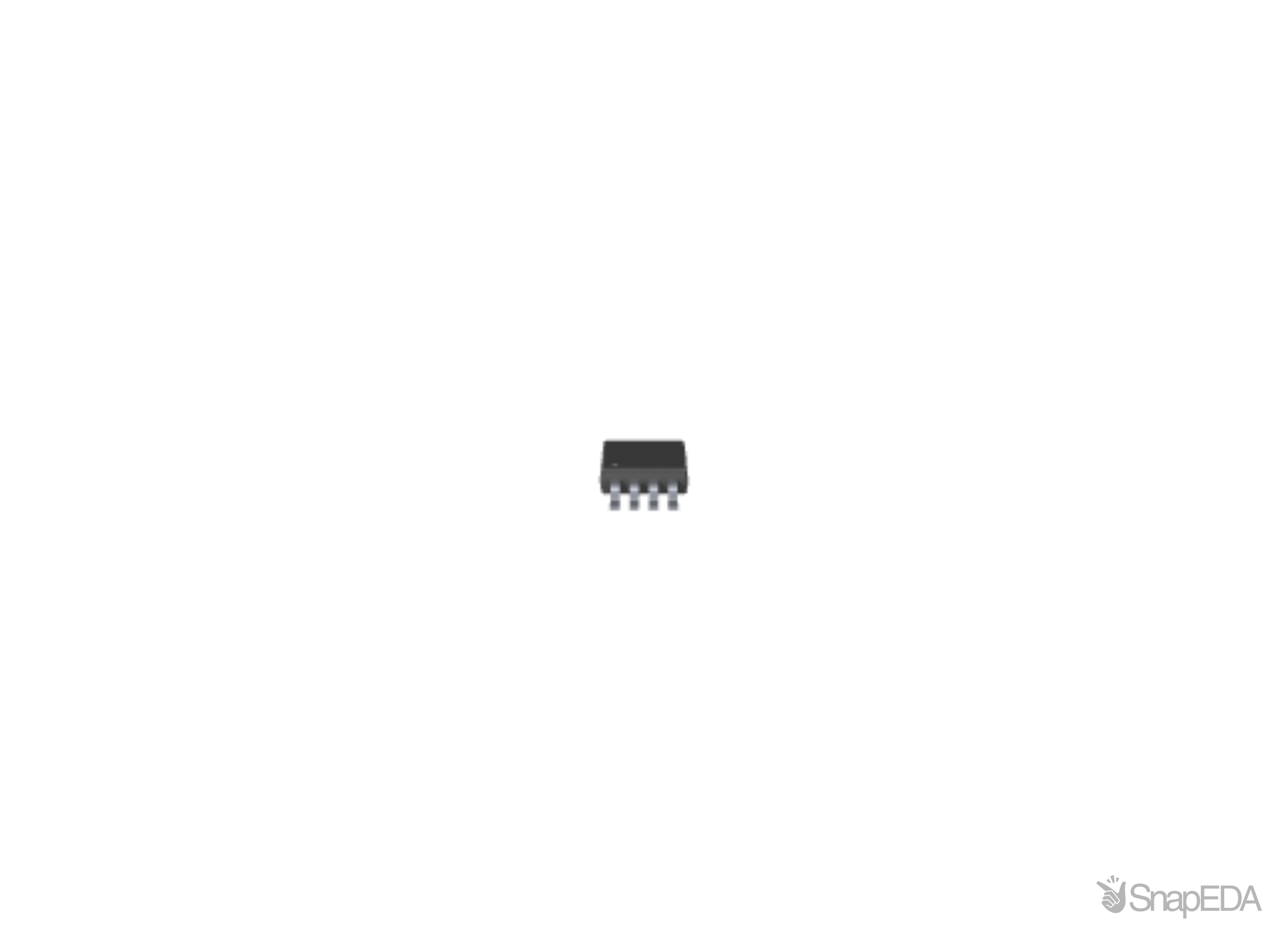

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA2320AIDGKT
| Part Name | OPA2320AIDGKT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Rail To Rail | Rail to Rail Input/Output |
| Typical Dual Supply Voltage (V) | ±0.9 → ±2.75 (V) |
| Typical Input Voltage Noise Density (V) | 8.5 (nV/√Hz) |
| Typical Gain Bandwidth Product | 20 (MHz) |
| Dimensions | 3.1 x 3.1 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 10 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 2 |
| Length | 3.1 (mm) |
| Height | 0.95 (mm) |
| Width | 3.1 (mm) |
| Typical Single Supply Voltage (V) | 1.8 → 5.5 V |
| Package Type | MSOP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Precision |
| Typical Voltage Gain (V) | 132 dB |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
Inventory for the OPA2320AIDGKT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
48,500
|
|
Visit Site |
No issues have been reported for the OPA2320AIDGKT
