OPA2614ID
Dual, High Gain Bandwidth, High Output Current, Operational Amplifier with Current Limit
Availability: In Stock
Package Type: SOIC-8
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA2614ID by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

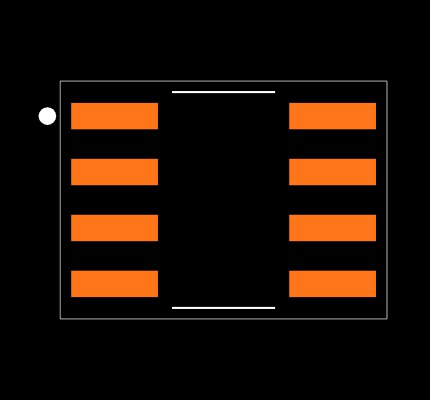

- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA2614ID
| Part Name | OPA2614ID |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 97 dB |
| Typical Dual Supply Voltage (V) | ±2.5 → ±16 (V) |
| Typical Input Voltage Noise Density (V) | 1.9 (nV/√Hz) |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 135 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 2 |
| Rail To Rail | No |
| Maximum Operating Frequency | 1 MHz |
| Typical Gain Bandwidth Product | 290 (MHz) |
| Typical Single Supply Voltage (V) | 5 → 12 V |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | High Current |
| Height | 1.5 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
Inventory for the OPA2614ID by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
219
|
|
Visit Site | |
|
★ Featured
|
15,000
|
705 x $0.49
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site | |
| Verical |
875
|
|
Visit Site |
No issues have been reported for the OPA2614ID
If you experienced any issues with this part, please report it.
