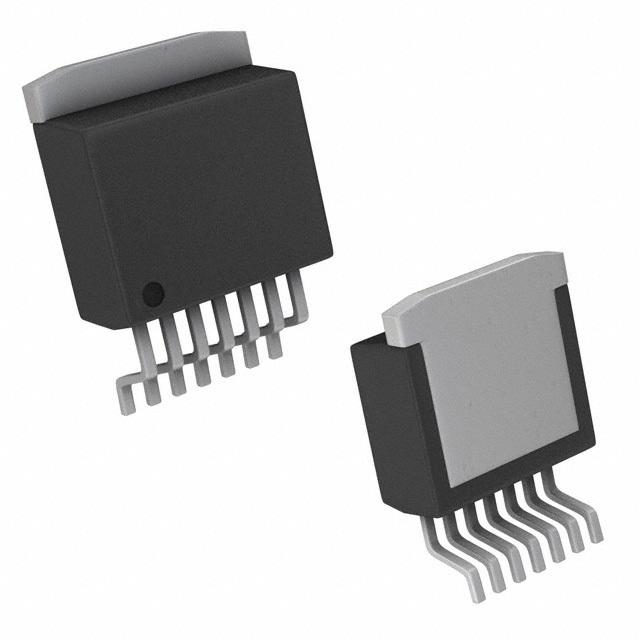

OPA551FA/500
High-current (380mA Typ), high-voltage (60V), operational amplifier
Availability: In Stock
Package Type: TO-263-7
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA551FA/500 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA551FA/500
| Part Name | OPA551FA/500 |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 126 dB |
| Typical Dual Supply Voltage (V) | ±30 (V) |
| Typical Input Voltage Noise Density (V) | 14 (nV/√Hz) |
| Dimensions | 10.1 x 8.89 x 4.44 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 15 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 3 (MHz) |
| Width | 8.89 (mm) |
| Length | 10.1 (mm) |
| Package Type | D2PAK |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Power |
| Height | 4.44 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
Inventory for the OPA551FA/500 by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,784
|
|
Visit Site | |
|
★ Featured
|
5,558
|
93 x $3.75
|
Visit Site | |
| Arrow Electronics |
79
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Texas Instruments |
2,841
|
|
Visit Site | |
| Verical |
79
|
|
Visit Site |
No issues have been reported for the OPA551FA/500
