OPA693IDBVT
Ultra-Wideband, Fixed Gain Video Buffer Amplifier with Disable
Availability: In Stock
Package Type: SOT-23-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPA693IDBVT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

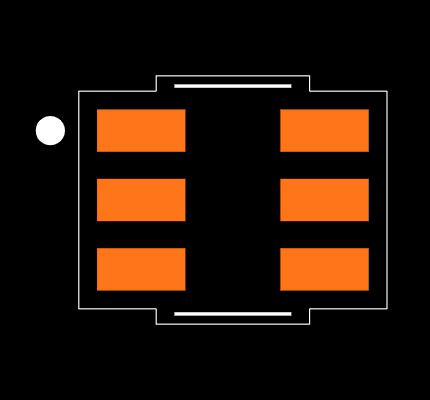

Footprint
No web preview
This Footprint is Available for

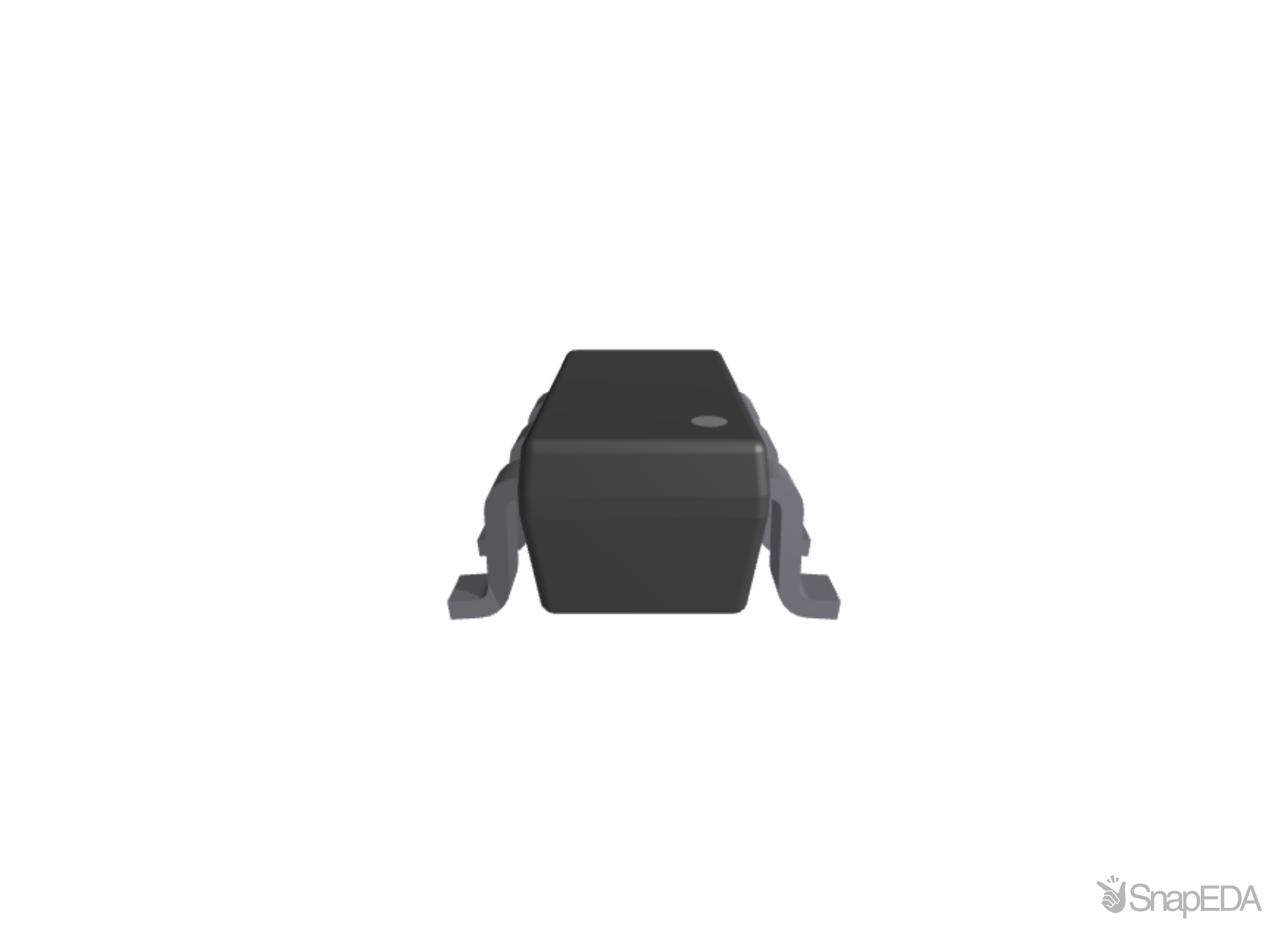

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPA693IDBVT
| Part Name | OPA693IDBVT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Dual Supply Voltage (V) | ±3 V, ±5 V |
| Typical Input Voltage Noise Density (V) | 1.8 (nV/√Hz) |
| Dimensions | 2.9 x 1.6 x 1.15 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 1500 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | No |
| Height | 1.15 (mm) |
| Typical Single Supply Voltage (V) | 9 V |
| Width | 1.6 (mm) |
| Length | 2.9 (mm) |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Current Feedback |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 6 |
