OPB620
Sensor, Phototransistor, Slotted Optical Switch, 4.83mm Slot, 890NM, 30 mA | Optek (TT Electronics) OPB620
Availability: Out of Stock
Package Type: PCB MOUNT
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OPB620 by TT Electronics/Optek and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

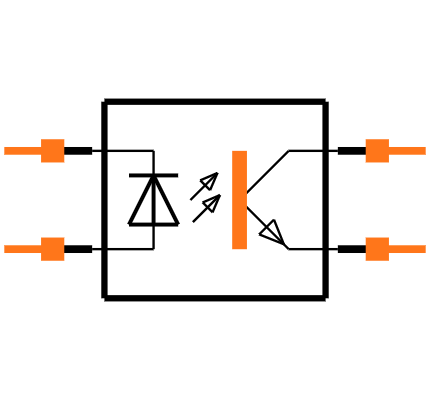

Symbol
No web preview
This Symbol is Available for

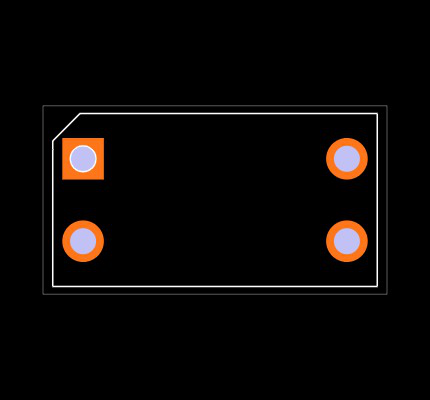

Footprint
No web preview
This Footprint is Available for

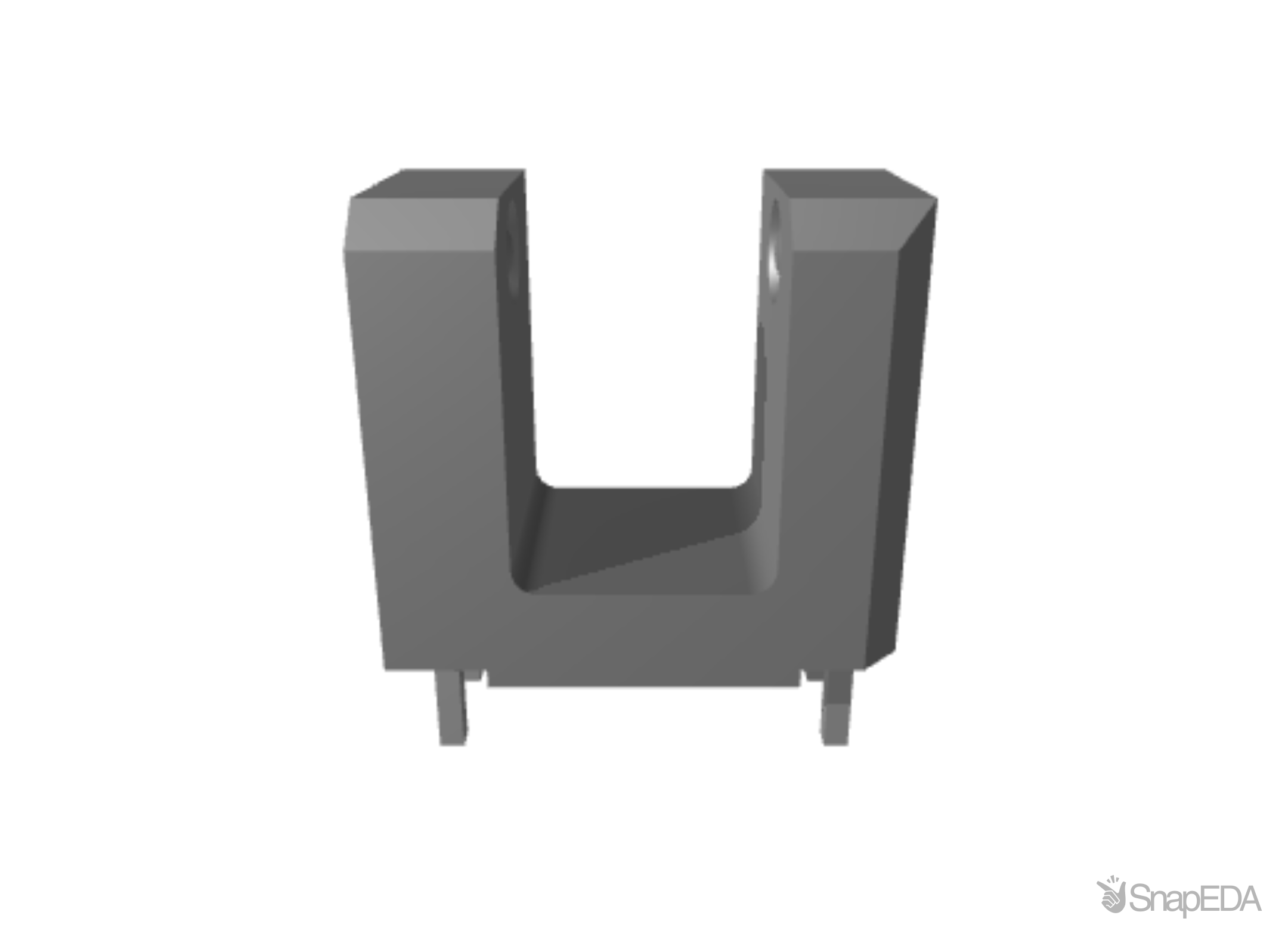

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OPB620
| Part Name | OPB620 |
| Manufacturer | TT Electronics/Optek |
| Category | Sensors |
| RoHS Compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Device | Phototransistor |
| Dimensions | 10.16 x 5.59 x 9.52 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -40 → +100 (°C) |
| Height | 9.52 (mm) |
| Width | 5.59 (mm) |
| Length | 10.16 (mm) |
| Number Of Pins | 4 |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Channels | 1 |
| Slot Width | 4.83 (mm) |
| Maximum Operating Temperature | +100 (°C) |
No issues have been reported for the OPB620
If you experienced any issues with the symbol or footprint, please report it.
