OZ-SS-112LM1,200
SnapVerified
Electromechanical Relay SPST-NO 16A 12VDC 270Ohm Through Hole
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the OZ-SS-112LM1,200 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

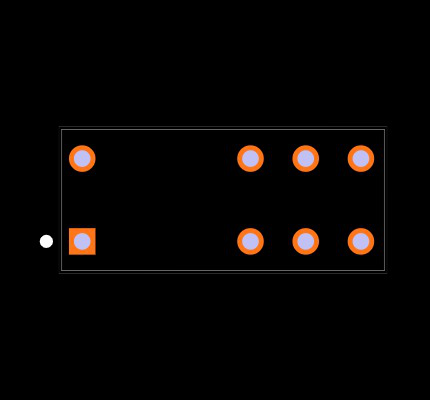

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the OZ-SS-112LM1,200
| Part Name | OZ-SS-112LM1,200 |
| Manufacturer | TE Connectivity |
| Insulation Initial Dielectric Between Contacts & Coil | 5000 |
| Product Weight | 13 |
| Coil Special Features | UL Coil Insulation Class A |
| Contact Limiting Making Current (A) | 16 |
| Height Class (Mechanical) | 20 – 25 |
| Insulation Creepage Between Contact & Coil | .315 |
| Product Width | 12.8 |
| Insulation Initial Resistance | 1000 |
| Contact Material | AgSnO2 |
| Coil Power Rating DC | 540 |
| Contact Limiting Continuous Current (A) | 16 |
| Contact Switching Voltage (Max) (V) | 240 |
| Coil Resistance | 270 |
| Contact Current Class (A) | 16 |
| Contact Arrangement | 1 Form A (NO) |
| Contact Number of Poles | 1 |
| Insulation Clearance Between Contact & Coil | 5.5 |
| TE Internal Number | 2-1440002-4 |
| Product Height | 20.6 |
| Insulation Initial Dielectric Between Coil & Contact Class | 4000 |
| Width Class (Mechanical) | 12 – 16 |
| Terminal Type | PCB-THT |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 29.21 |
| Insulation Clearance Class | 5 – 8 |
| Coil Voltage Rating (V) | 12 |
| Packaging Method | Box & Carton |
| Environmental Ambient Temperature (Max) | 158 |
| Contact Switching Load (Min) | 100mA @ 5V |
| Insulation Special Features | 10000V Initial Surge Withstand Voltage between Contacts & Coil |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Environmental Ambient Temperature Class | 50 – 70 |
| Length Class (Mechanical) | 25 – 30 |
| Contact Limiting Short-Time Current (A) | 16 |
| Contact Limiting Breaking Current (A) | 16 |
| Coil Power Rating Class | 500 – 600 |
| Contact Current Rating (Max) (A) | 16 |
| Contact Voltage Rating (V) | 240 |
| Environmental Category of Protection | RTII |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Insulation Creepage Class | 5.5 – 8 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
