P6B-26P

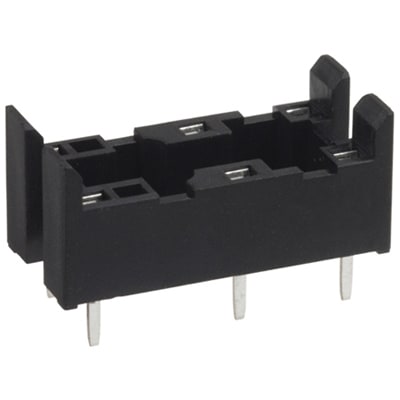

Relay Socket, PCB, G6B Series Relay, UL Recognized, CSA Certified | Omron Electronic Components P6B-26P
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the P6B-26P by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the P6B-26P
| Part Name | P6B-26P |
| Manufacturer | Omron |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | PCB Mount |
| Series | P6B |
| Accessory Type | Socket |
| Voltage (V) | 3 → 24 (V dc) |
| Termination Type | PCB Pin |
| For Use With | G6B-2014P-US Relay, G6B-2114P-US Relay, G6B-2214P-US Relay |
| Number Of Contacts | 6 |
