P7802B-1000
SnapVerified
1.8 Vdc, 1 A, 1.8 W, 4.75~26 Vdc Input Range
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the P7802B-1000 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

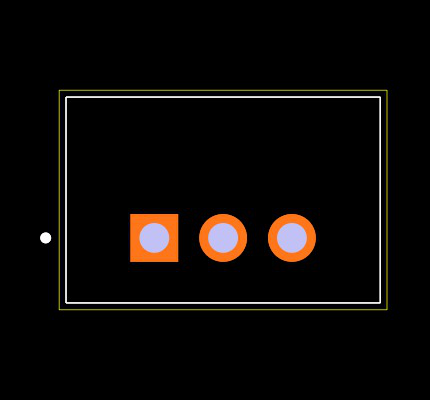

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the P7802B-1000
| Part Name | P7802B-1000 |
| Manufacturer | CUI |
| Number of Outputs | 1 |
| Operating Temp MAX (°C) | 90 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/p78b-1000-series |
| Grade | Commercial |
| Power (W) | 1.8 |
| Input Voltage (Vdc) (V) | 4.75 ~ 36 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 1.8 |
| Standard Footprint | SIP3 |
| Protections | Continuous Short Circuit |
| Package Type | SIP |
| Isolation (Vdc) | 0 |
| Dimensions LxWxH (mm) | 11.6 x 7.6 x 10.2 |
| Output Current (A) | 1 |
| Dimensions LxWxH (in) | 0.46 x 0.3 x 0.4 |
| Nom. Input Voltage (Vdc) (V) | 12, 14, 15, 18, 20, 24, 28, 30, 32, 36, 5, 6, 7.5, 9 |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the P7802B-1000 by CUI Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
74
|
|
Visit Site |
No issues have been reported for the P7802B-1000
If you experienced any issues with the symbol or footprint, please report it.
