P78A05-0500
SnapVerified
500 mA Output Current, 6~28 Vdc Input, 3 Pin SIP, Non-Isolated, Dc-Dc Converter
Availability: In Stock
Package Type: SIP-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the P78A05-0500 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

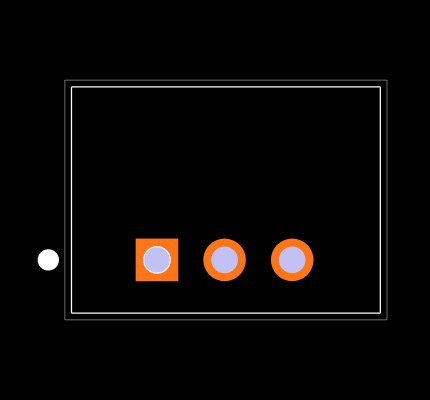

Footprint
No web preview
This Footprint is Available for

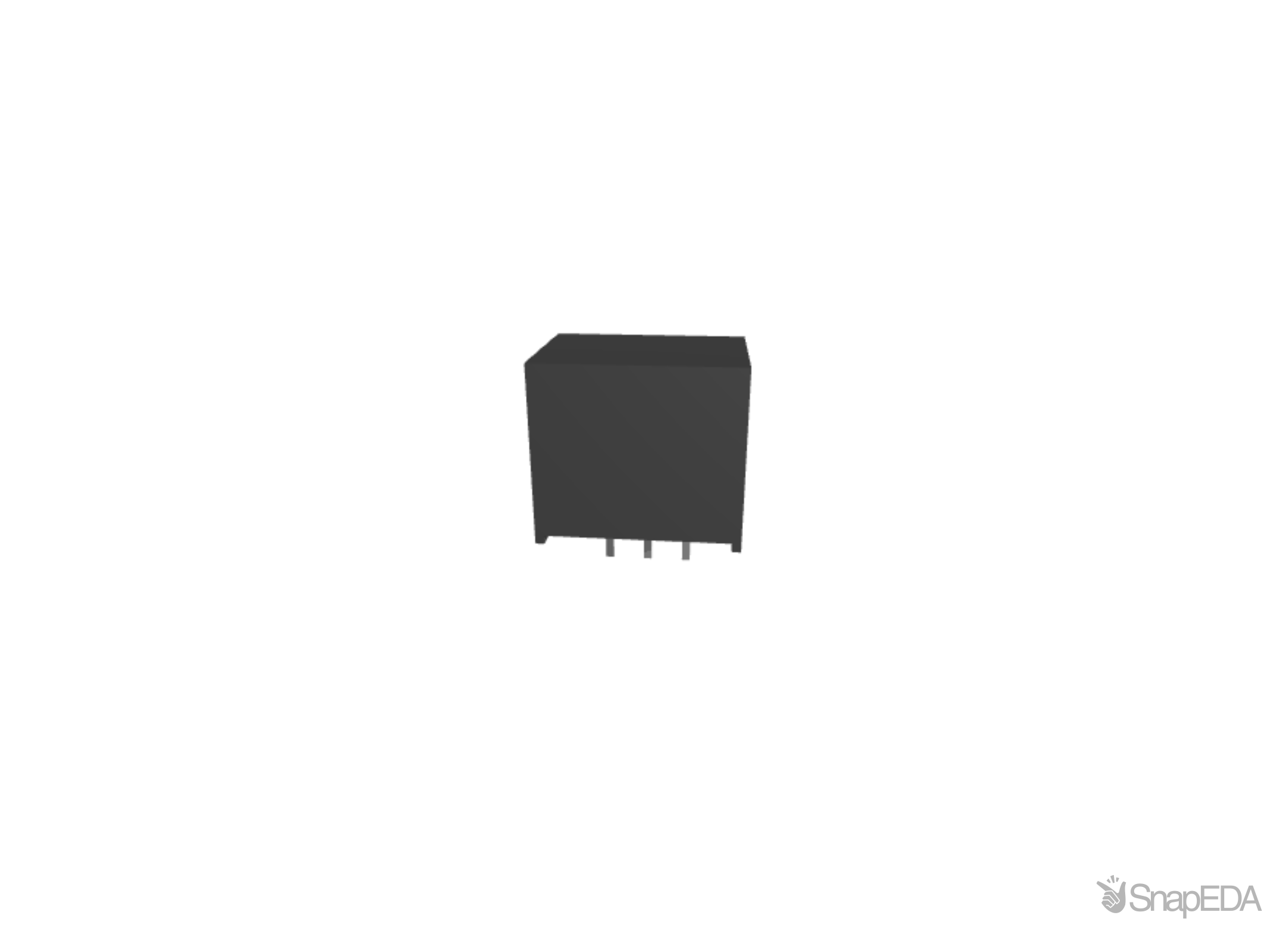

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the P78A05-0500
| Part Name | P78A05-0500 |
| Manufacturer | CUI Inc. |
| Number of Outputs | 1 |
| Operating Temp MAX (°C) | 70 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/p78a-0500-series |
| Standard Footprint | SIP3 |
| Power (W) | 2.5 |
| Input Voltage (Vdc) (V) | 7 ~ 28 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 5 |
| Nom. Input Voltage (Vdc) (V) | 12, 14, 15, 18, 20, 24, 28, 7.5, 9 |
| Regulation | Yes |
| Protections | Short Circuit |
| Package Type | SIP |
| Isolation (Vdc) | 0 |
| Dimensions LxWxH (mm) | 11.6 x 8.5 x 10.4 |
| Output Current (A) | 0.5 |
| Special Features | Extended Temp Range |
| Operating Temp MAX (With Derating, °C) | 85 |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Dimensions LxWxH (in) | 0.457 x 0.335 x 0.41 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
